CSPower OPzV2-420 Deep Cycle Tubular GEL Battery

Short Description:

OPzV Series TUBULAR GEL BATTERY LONGEST LIFE GEL BATTERY(solid-state)

●Capacity: 2V200Ah~2V3000Ah
●Designed floating service life: >20 years @ 25 °C/77 °F.
●Cyclic usage: 80% DOD, >2000cycles
●Brand: CSPOWER / OEM Brand for customers Freely
●Color: white grey case
●OEM brand freely
●Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 Approved

Normal 35-40 days for production with injection molding Lead-plate by ourself

Application: Solar power generation grid, Off Grid energy storage systems, Wind Power Systems, sweeper, forklift


Product Detail

Technical Data

Product Tags

OPzV2-420
Nominal Voltage 2V(Single Cell)
Design Floating Life @ 25℃ 25 Years
Nominal Capacity @ 25℃ 10 hour rate@42.0A,1.8V 420Ah
Capacity @ 25℃ 20hour rate (22.05A,1.8V ) 441Ah
5 hour rate (71.4A,1.75V ) 357Ah
1 hour rate (265.4A,1.6V ) 265.4Ah
Internal Resistance  Full Charged Battery@ 25℃ ≤0.38mΩ
Ambient Temperature Discharge -40℃~70℃
Charge  -0℃~50℃
Storage  -20℃~60℃
Max.Discharge Current @ 25℃ 1700A(5s)
Capacity affected by Temperature (10 hour ) 40℃ 105%
25℃ 100%
0℃ 89%
-15℃ 79%
Self-Discharge@25℃per Month 2%
Charge (Constant Voltage) @ 25℃ Standby Use Initial Charging Current Less than 84.0A Voltage 2.25-2.3V
Cycle Use Initial Charging Current Less than 84.0A Voltage 2.37-2.4V
Dimension (mm*mm*mm) Length 145±1 * Width 206±1 * Height  491±1 (Total Height 506±1)
Weight (kg) 33.5±3%

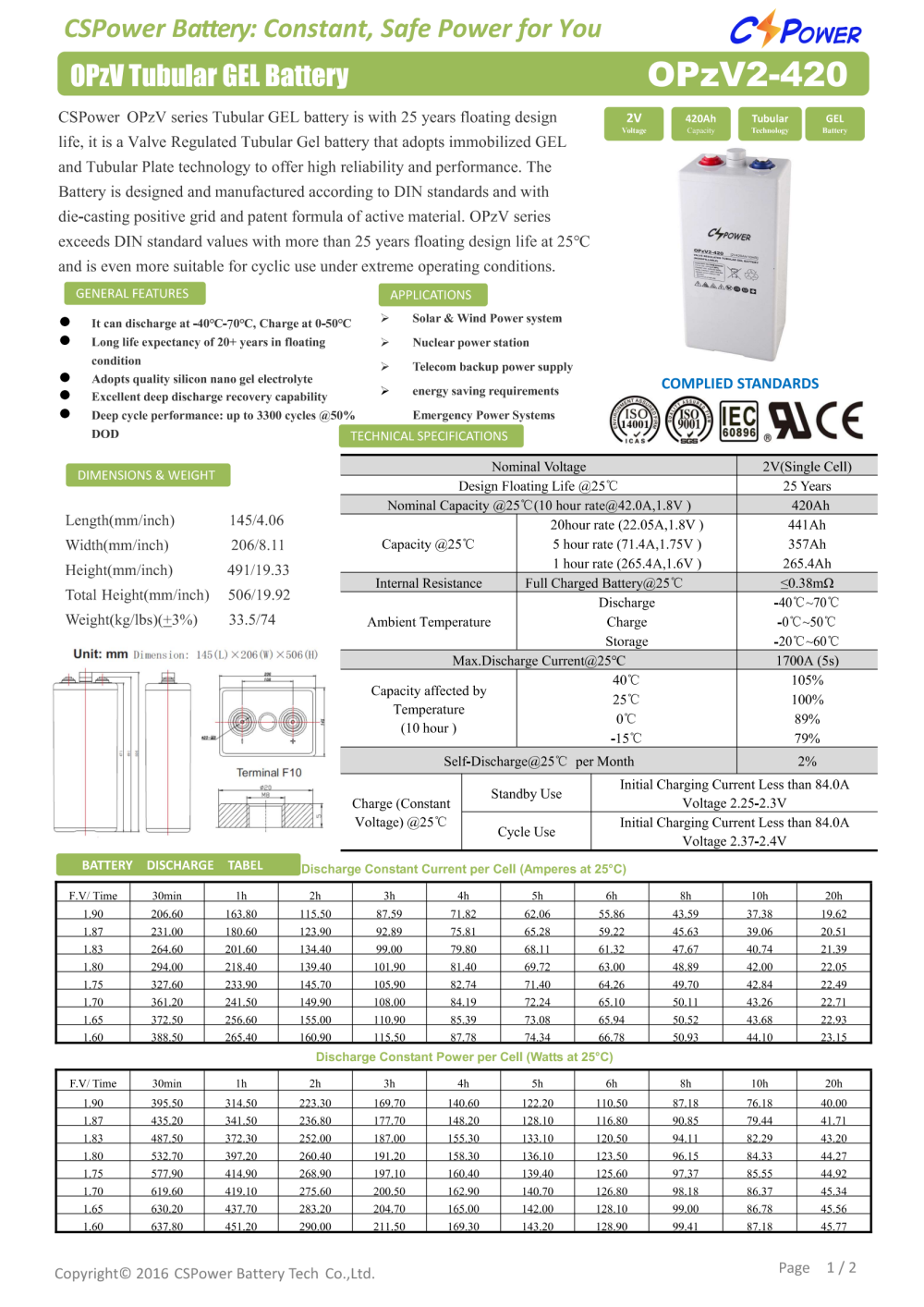

CSPower OPzV2-420 Deep Cycle Tubular GEL Battery_00

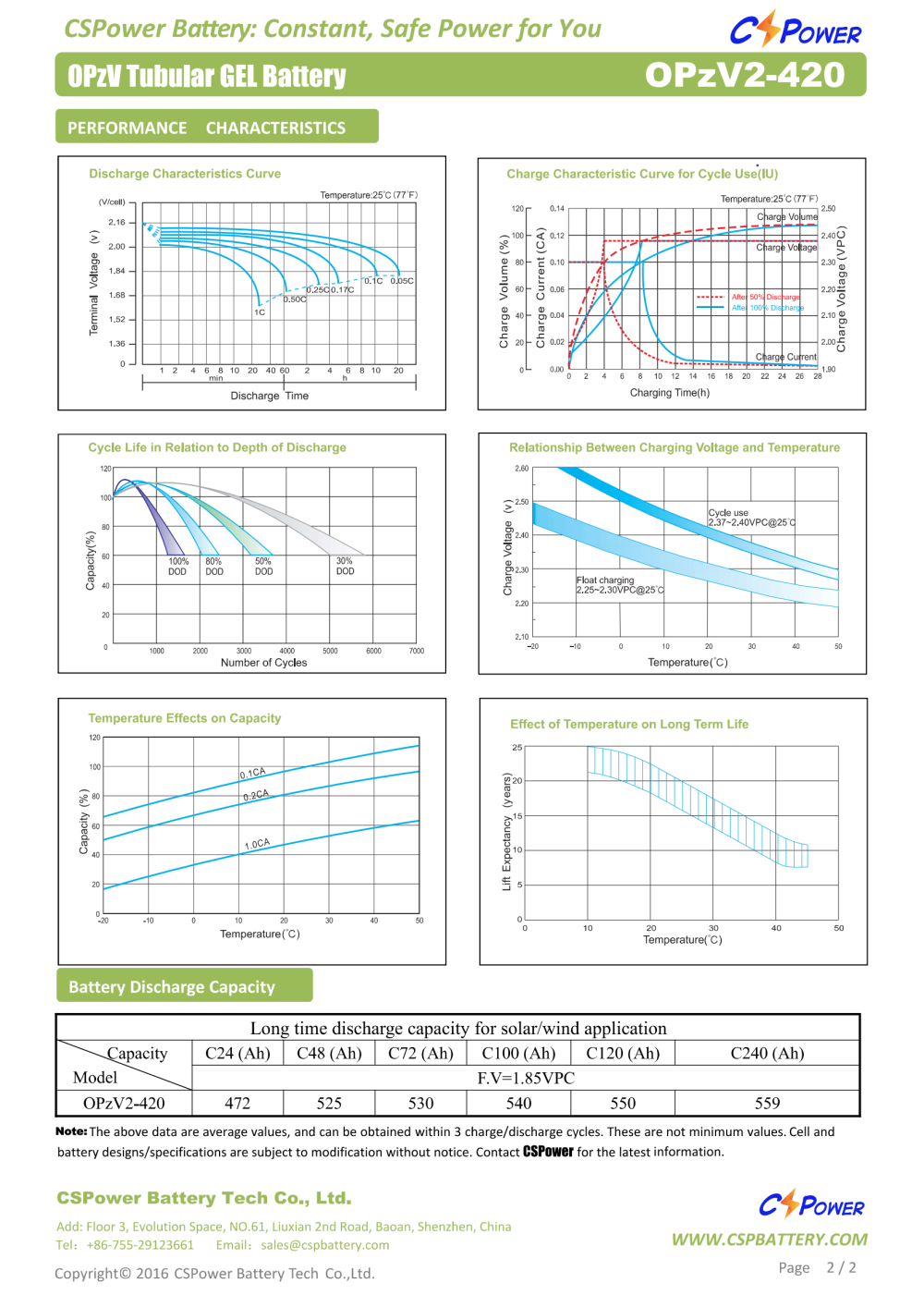

CSPower OPzV2-420 Deep Cycle Tubular GEL Battery_01


  • Previous:
  • Next:

  • CSPower
    Model
    Voltage
    (V)
    Capacity
    (AH)
    Dimension (mm) Weight Terminal
    Length Width Height Total Height kgs
    Tubular Plate Deep Cycle OpzV GEL Battery 2V
    OPzV2-200 2 200 103 206 354 390 18 M8/M10
    OPzV2-250 2 250 124 206 354 390 22.5 M8/M10
    OPzV2-300 2 300 145 206 354 390 25 M8/M10
    OPzV2-350 2 350 124 206 470 506 28 M8/M10
    OPzV2-420 2 420 145 206 470 506 32 M8/M10
    OPzV2-500 2 500 166 206 470 506 38 M8/M10
    OPzV2-600 2 600 145 206 645 681 46 M8/M10
    OPzV2-800 2 800 191 210 645 681 65 M8/M10
    OPzV2-1000 2 1000 233 210 645 681 74 M8/M10
    OPzV2-1200 2 1200 275 210 645 681 93 M8/M10
    OPzV2-1500 2 1500 275 210 795 831 112 M8/M10
    OPzV2-2000 2 2000 399 212 772 807 152 M8/M10
    OPzV2-2500 2 2500 487 212 772 807 187 M8/M10
    OPzV2-3000 2 3000 576 212 772 807 225 M8/M10
    OPzV12-100 12 100 407 175 235 235 36 M8/M10
    OPzV12-150 12 150 532 210 217 217 54 M8/M10
    OPzV12-200 12 200 498 259 238 238 72 M8/M10
    Products will be improved without notice, please contact sales for specification in kind prevail.
