CSPower OPzV2-350 Deep Cycle Tubular GEL Battery

Short Description:

OPzV Series TUBULAR GEL BATTERY LONGEST LIFE GEL BATTERY(solid-state)

●Capacity: 2V200Ah~2V3000Ah
●Designed floating service life: >20 years @ 25 °C/77 °F.
●Cyclic usage: 80% DOD, >2000cycles
●Brand: CSPOWER / OEM Brand for customers Freely
●Color: white grey case
●OEM brand freely
●Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 Approved

Normal 35-40 days for production with injection molding Lead-plate by ourself

Application: Solar power generation grid, Off Grid energy storage systems, Wind Power Systems, sweeper, forklift

Send email to us Download as PDF

Product Detail

Technical Data

Product Tags

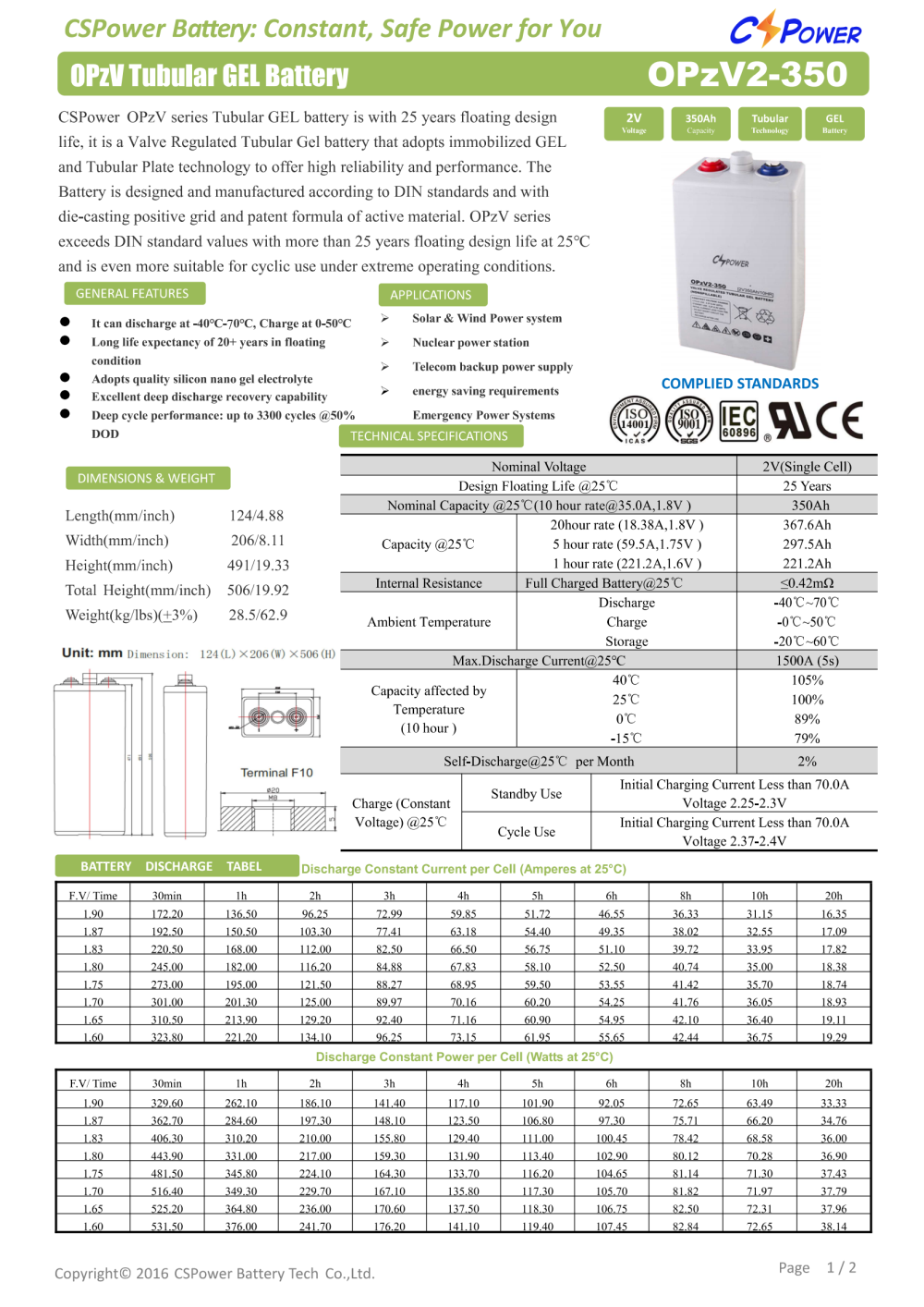

OPzV2-350
Nominal Voltage			2V(Single Cell)
Design Floating Life @ 25℃			25 Years
Nominal Capacity @ 25℃		10 hour rate@35.0A,1.8V	350Ah
Capacity @ 25℃		20hour rate (18.38A,1.8V )	367.6Ah
		5 hour rate (59.5A,1.75V )	297.5Ah
		1 hour rate (221.2A,1.6V )	221.2Ah
Internal Resistance		Full Charged Battery@ 25℃	≤0.42mΩ
Ambient Temperature		Discharge	-40℃~70℃
		Charge	-0℃~50℃
		Storage	-20℃~60℃
Max.Discharge Current			@ 25℃ 1500A(5s)
Capacity affected by Temperature (10 hour )		40℃	105%
		25℃	100%
		0℃	89%
		-15℃	79%
Self-Discharge@25℃per Month			2%
Charge (Constant Voltage) @ 25℃	Standby Use	Initial Charging Current Less than 70.0A Voltage 2.25-2.3V
	Cycle Use	Initial Charging Current Less than 70.0A Voltage 2.37-2.4V
Dimension (mmmmmm)	Length 124±1 * Width 206±1 * Height 491±1 (Total Height 506±1)
Weight (kg)	28.5±3%

Previous: CSPower OPzV2-300 Deep Cycle Tubular GEL Battery

Next: CSPower OPzV2-420 Deep Cycle Tubular GEL Battery

CSPower Model	Voltage (V)	Capacity (AH)	Dimension (mm)				Weight	Terminal
CSPower Model	Voltage (V)	Capacity (AH)	Length	Width	Height	Total Height	kgs	Terminal
Tubular Plate Deep Cycle OpzV GEL Battery 2V
OPzV2-200	2	200	103	206	354	390	18	M8/M10
OPzV2-250	2	250	124	206	354	390	22.5	M8/M10
OPzV2-300	2	300	145	206	354	390	25	M8/M10
OPzV2-350	2	350	124	206	470	506	28	M8/M10
OPzV2-420	2	420	145	206	470	506	32	M8/M10
OPzV2-500	2	500	166	206	470	506	38	M8/M10
OPzV2-600	2	600	145	206	645	681	46	M8/M10
OPzV2-800	2	800	191	210	645	681	65	M8/M10
OPzV2-1000	2	1000	233	210	645	681	74	M8/M10
OPzV2-1200	2	1200	275	210	645	681	93	M8/M10
OPzV2-1500	2	1500	275	210	795	831	112	M8/M10
OPzV2-2000	2	2000	399	212	772	807	152	M8/M10
OPzV2-2500	2	2500	487	212	772	807	187	M8/M10
OPzV2-3000	2	3000	576	212	772	807	225	M8/M10
OPzV12-100	12	100	407	175	235	235	36	M8/M10
OPzV12-150	12	150	532	210	217	217	54	M8/M10
OPzV12-200	12	200	498	259	238	238	72	M8/M10
Products will be improved without notice, please contact sales for specification in kind prevail.
