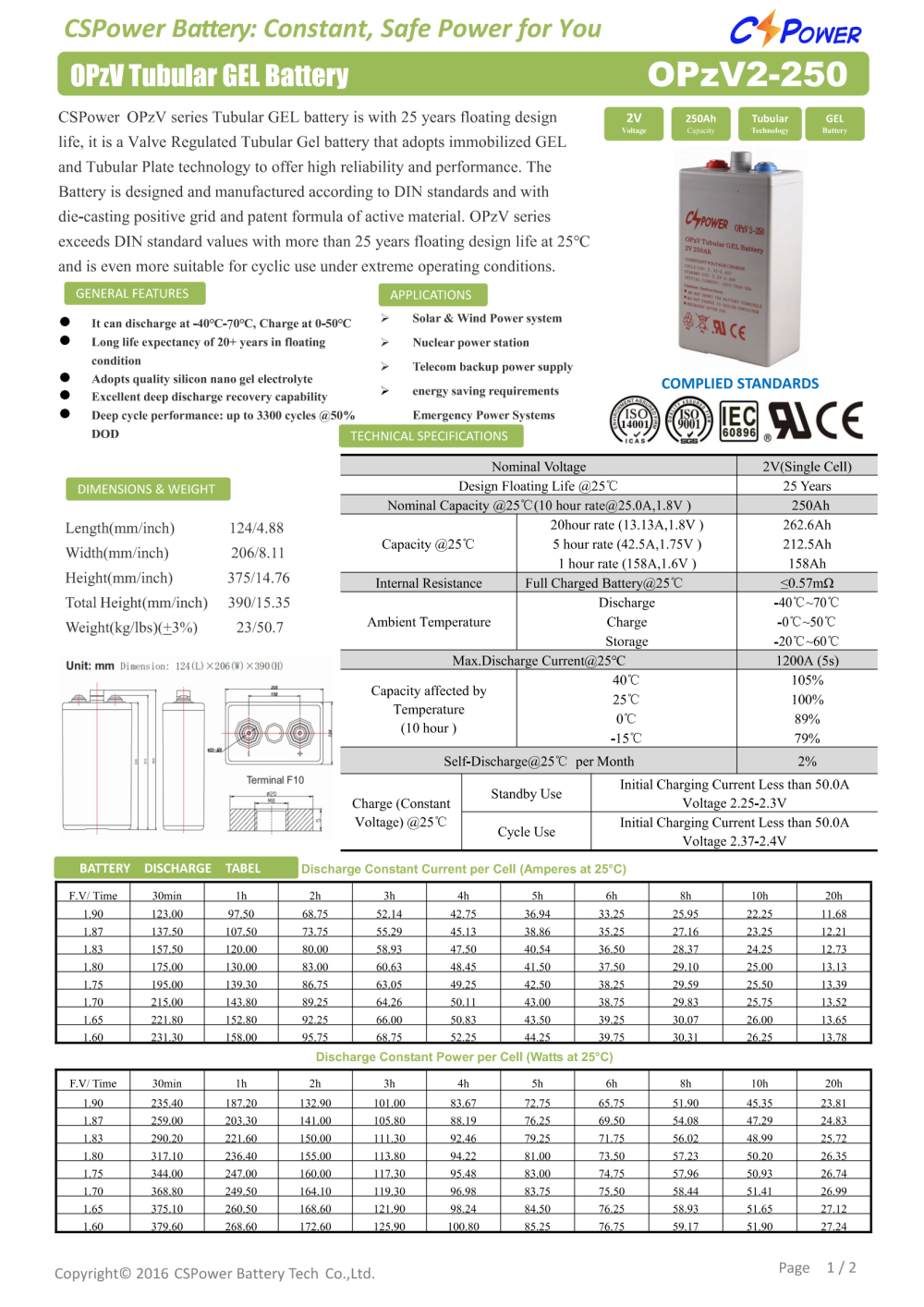

CSPower OPzV2-250 Deep Cycle Tubular GEL Battery
| OPzV2-250 | |||
| Nominal Voltage | 2V(Single Cell) | ||
| Design Floating Life @ 25℃ | 25 Years | ||
| Nominal Capacity @ 25℃ | 10 hour rate@25.0A,1.8V | 250Ah | |
| Capacity @ 25℃ | 20hour rate (13.13A,1.8V ) | 262.6Ah | |
| 5 hour rate (42.5A,1.75V ) | 212.5Ah | ||
| 1 hour rate (158A,1.6V ) | 158Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | ≤0.57mΩ | |
| Ambient Temperature | Discharge | -40℃~70℃ | |
| Charge | -0℃~50℃ | ||
| Storage | -20℃~60℃ | ||
| Max.Discharge Current | @ 25℃ 1200A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
| 25℃ | 100% | ||
| 0℃ | 89% | ||
| -15℃ | 79% | ||
| Self-Discharge@25℃per Month | 2% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 50.0A Voltage 2.25-2.3V | |
| Cycle Use | Initial Charging Current Less than 50.0A Voltage 2.37-2.4V | ||
| Dimension (mm*mm*mm) | Length 124±1 * Width 206±1 * Height 375±1 (Total Height 390±1) | ||
| Weight (kg) | 23±3% | ||
| CSPower Model |
Voltage (V) |
Capacity (AH) |
Dimension (mm) | Weight | Terminal | |||
| Length | Width | Height | Total Height | kgs | ||||
| Tubular Plate Deep Cycle OpzV GEL Battery 2V | ||||||||
| OPzV2-200 | 2 | 200 | 103 | 206 | 354 | 390 | 18 | M8/M10 |
| OPzV2-250 | 2 | 250 | 124 | 206 | 354 | 390 | 22.5 | M8/M10 |
| OPzV2-300 | 2 | 300 | 145 | 206 | 354 | 390 | 25 | M8/M10 |
| OPzV2-350 | 2 | 350 | 124 | 206 | 470 | 506 | 28 | M8/M10 |
| OPzV2-420 | 2 | 420 | 145 | 206 | 470 | 506 | 32 | M8/M10 |
| OPzV2-500 | 2 | 500 | 166 | 206 | 470 | 506 | 38 | M8/M10 |
| OPzV2-600 | 2 | 600 | 145 | 206 | 645 | 681 | 46 | M8/M10 |
| OPzV2-800 | 2 | 800 | 191 | 210 | 645 | 681 | 65 | M8/M10 |
| OPzV2-1000 | 2 | 1000 | 233 | 210 | 645 | 681 | 74 | M8/M10 |
| OPzV2-1200 | 2 | 1200 | 275 | 210 | 645 | 681 | 93 | M8/M10 |
| OPzV2-1500 | 2 | 1500 | 275 | 210 | 795 | 831 | 112 | M8/M10 |
| OPzV2-2000 | 2 | 2000 | 399 | 212 | 772 | 807 | 152 | M8/M10 |
| OPzV2-2500 | 2 | 2500 | 487 | 212 | 772 | 807 | 187 | M8/M10 |
| OPzV2-3000 | 2 | 3000 | 576 | 212 | 772 | 807 | 225 | M8/M10 |
| OPzV12-100 | 12 | 100 | 407 | 175 | 235 | 235 | 36 | M8/M10 |
| OPzV12-150 | 12 | 150 | 532 | 210 | 217 | 217 | 54 | M8/M10 |
| OPzV12-200 | 12 | 200 | 498 | 259 | 238 | 238 | 72 | M8/M10 |
| Products will be improved without notice, please contact sales for specification in kind prevail. | ||||||||
