CSPower OPzS2-3000 Tubular Flooded Battery

Short Description:

OPzS Series Flooded Tubular OPzS Lead Acid Battery 2VDC

Voltage: 2V

Capacity: 2V200Ah~2V3000Ah

Designed floating service life: >20 years @ 25 °C/77 °F.

Cyclic usage: 80% DOD, >2000cycles

Brand: CSPOWER / OEM Brand for customers Freely

Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 Approved

Application

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.

Send email to us Download as PDF

Product Detail

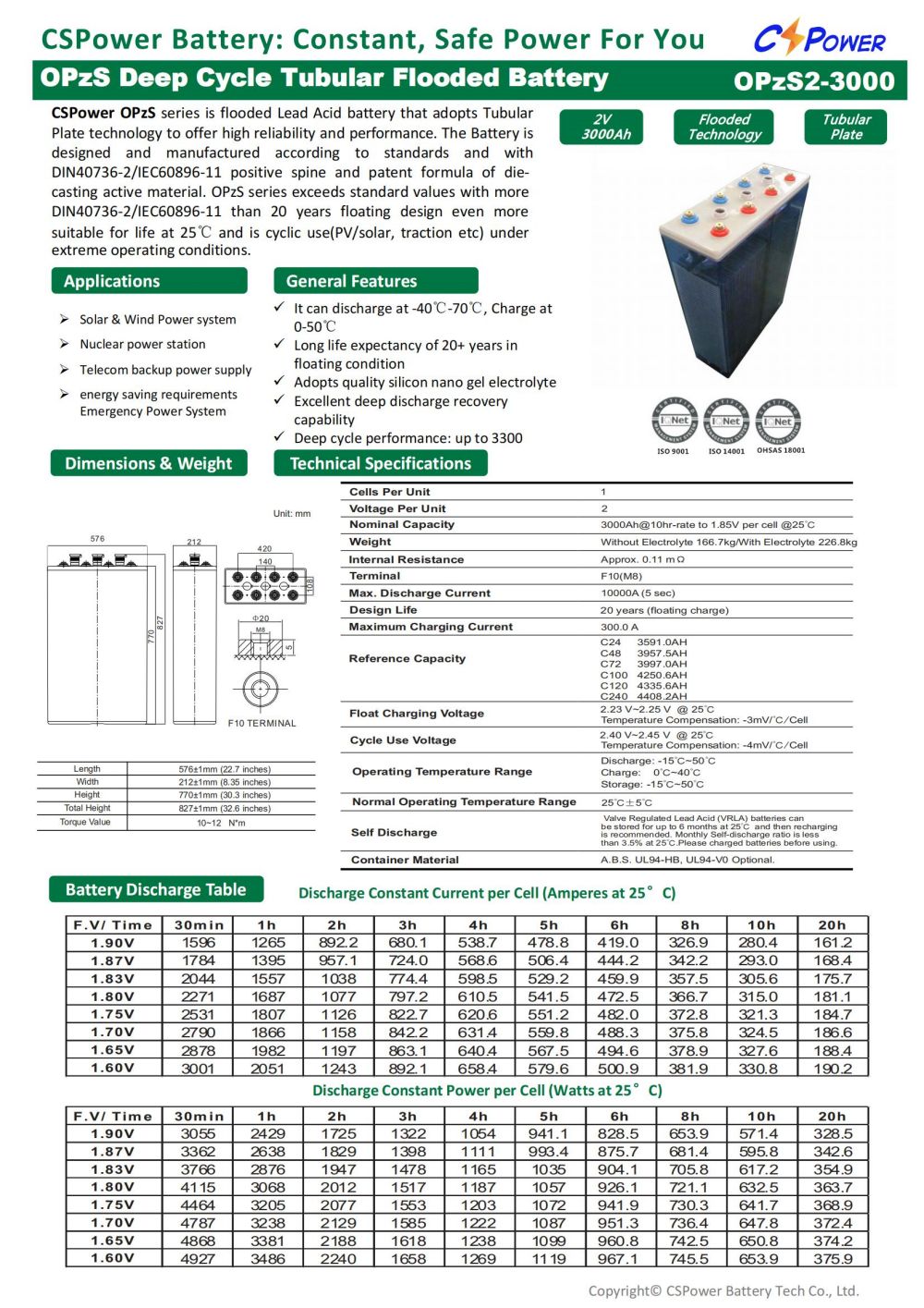

Technical Data

Product Tags

OPzS2-3000
Nominal Voltage			2V(Single Cell)
Design Floating Life @ 25℃			20 Years
Nominal Capacity @ 25℃		10 hour rate@300.0A,1.8V	3000Ah
Capacity @ 25℃		20hour rate (157.5A,1.8V )	3150Ah
		5 hour rate (510A,1.75V )	2550Ah
		1 hour rate (1896A,1.6V )	1896Ah
Internal Resistance		Full Charged Battery@ 25℃	≤0.19mΩ
Ambient Temperature		Discharge	-15℃~50℃
		Charge	0 ~40 ℃ ℃
		Storage	-15 ~50 ℃ ℃
Max.Discharge Current			@ 25℃ 10000A(5s)
Capacity affected by Temperature (10 hour )		40℃	105%
		25℃	100%
		0℃	89%
		-15℃	79%
Self-Discharge@25℃per Month			2%
Charge (Constant Voltage) @ 25℃	Standby Use	Initial Charging Current Less than 600.0A Voltage 2.25-2.3V
	Cycle Use	Initial Charging Current Less than 600.0A Voltage 2.37-2.4V
Dimension (mmmmmm)	Length 576±1 * Width 212±1 * Height 770±1 (Total Height 827±1)
Weight (kg)	226±3%

Previous: CSPower OPzS2-2500 Tubular Flooded Battery

Next: CSPower FL12-55 Front Terminal Gel Battery

CSPower Model	Voltage (V)	Capacity (AH)	Dimension (mm)				Weight (kgs)
CSPower Model	Voltage (V)	Capacity (AH)	Length	Width	Height	Total Height	No electrolyte	(with electrolyte)
OPzS2-200	2	200	103	206	355	410	12.8	17.5
OPzS2-250	2	250	124	206	355	410	15.1	20.5
OPzS2-300	2	300	145	206	355	410	17.5	24
OPzS2-350	2	350	124	206	471	526	19.8	27
OPzS2-420	2	420	145	206	471	526	23	32
OPzS2-500	2	500	166	206	471	526	26.2	38
OPzS2-600	2	600	145	206	646	701	32.6	47
OPzS2-800	2	800	191	210	646	701	45	64
OPzS2-1000	2	1000	233	210	646	701	54	78
OPzS2-1200	2	1200	275	210	646	701	63.6	92
OPzS2-1500	2	1500	275	210	773	828	81.7	112
OPzS2-2000	2	2000	399	210	773	828	119.5	150
OPzS2-2500	2	2500	487	212	771	826	152	204
OPzS2-3000	2	3000	576	212	772	806	170	230
Products will be improved without notice, please contact sales for specification in kind prevail.
