CSPower OPzS2-1200 Tubular Flooded Battery

Short Description:

OPzS Series Flooded Tubular OPzS Lead Acid Battery 2VDC

Voltage: 2V

Capacity: 2V200Ah~2V3000Ah

Designed floating service life: >20 years @ 25 °C/77 °F.

Cyclic usage: 80% DOD, >2000cycles

Brand: CSPOWER / OEM Brand for customers Freely

Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 Approved

Application

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.


Product Detail

Technical Data

Product Tags

OPzS2-1200
Nominal Voltage 2V(Single Cell)
Design Floating Life @ 25℃ 20 Years
Nominal Capacity @ 25℃ 10 hour rate@120.0A,1.8V 1200Ah
Capacity @ 25℃ 20hour rate (63A,1.8V ) 1260Ah
5 hour rate (204A,1.75V ) 1020Ah
1 hour rate (758.4A,1.6V ) 758.4Ah
Internal Resistance  Full Charged Battery@ 25℃ ≤0.25mΩ
Ambient Temperature Discharge  -15℃~50℃
Charge  0 ~40 ℃
Storage  -15 ~50 ℃
Max.Discharge Current @ 25℃ 4500A(5s)
Capacity affected by Temperature (10 hour ) 40℃ 105%
25℃ 100%
0℃ 89%
-15℃ 79%
Self-Discharge@25℃per Month 2%
Charge (Constant Voltage) @ 25℃ Standby Use Initial Charging Current Less than 240.0A Voltage 2.25-2.3V
Cycle Use Initial Charging Current Less than 240.0A Voltage 2.37-2.4V
Dimension (mm*mm*mm) Length 275±1 * Width 210±1 * Height  646±1 (Total Height 703±1)
Weight (kg) 92.5±3%

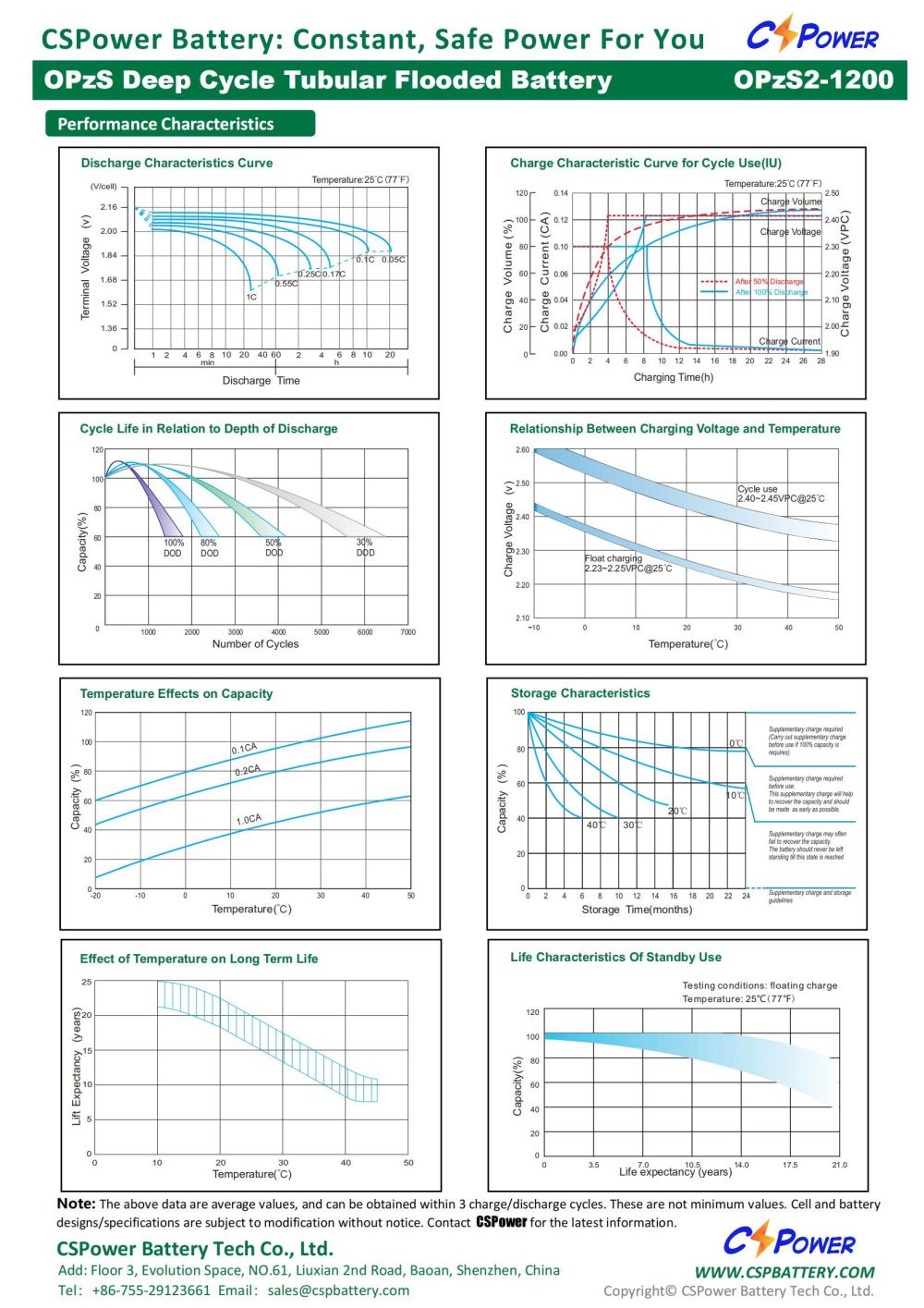

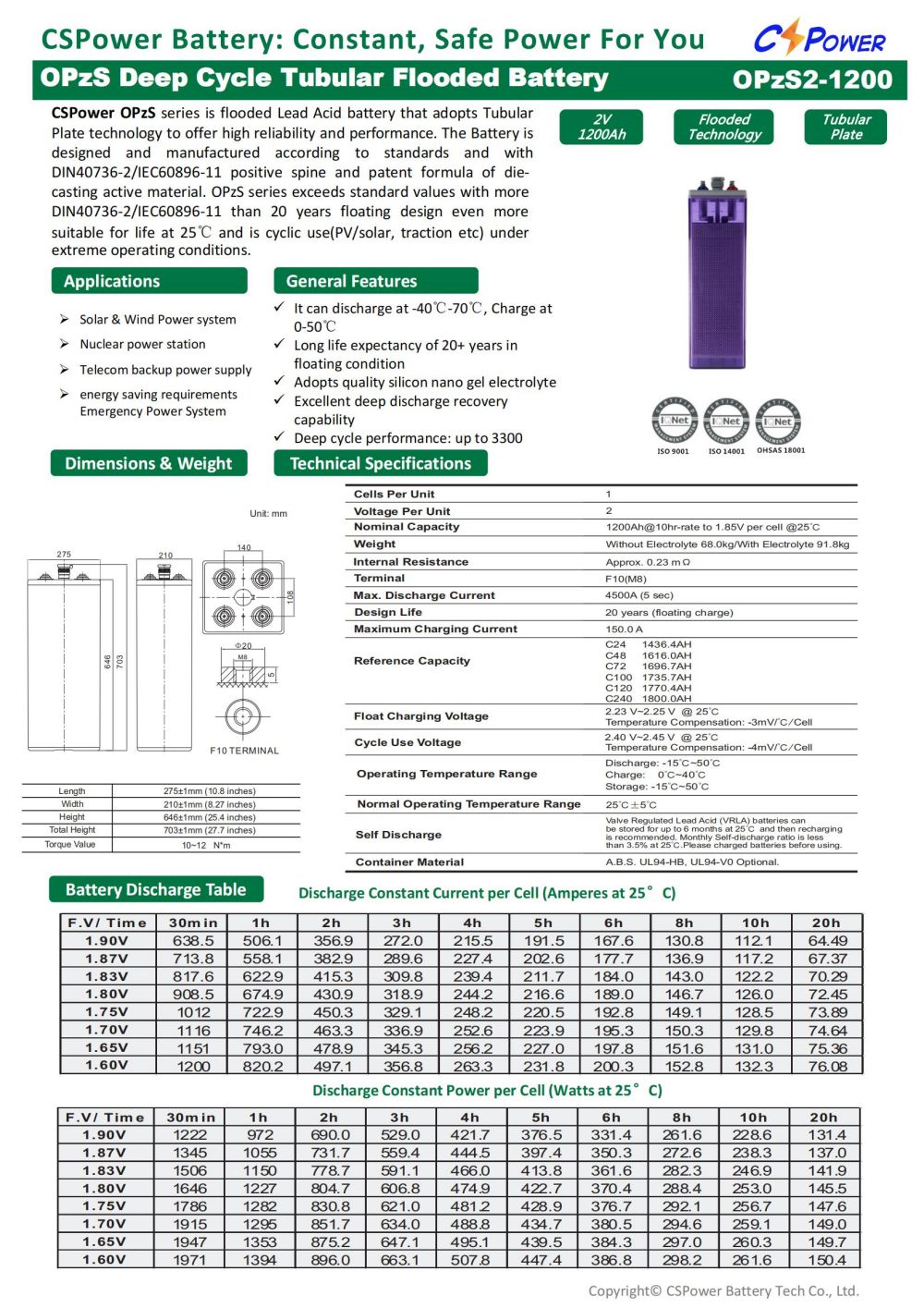

CSPower OPzS2-1200 Tubular Flooded Battery_00 CSPower OPzS2-1200 Tubular Flooded Battery_01


  • Previous:
  • Next:

  • CSPower
    Model
    Voltage
    (V)
    Capacity
    (AH)
    Dimension (mm) Weight (kgs)
    Length Width Height Total Height No electrolyte  (with electrolyte)
    OPzS2-200 2 200 103 206 355 410 12.8 17.5
    OPzS2-250 2 250 124 206 355 410 15.1 20.5
    OPzS2-300 2 300 145 206 355 410 17.5 24
    OPzS2-350 2 350 124 206 471 526 19.8 27
    OPzS2-420 2 420 145 206 471 526 23 32
    OPzS2-500 2 500 166 206 471 526 26.2 38
    OPzS2-600 2 600 145 206 646 701 32.6 47
    OPzS2-800 2 800 191 210 646 701 45 64
    OPzS2-1000 2 1000 233 210 646 701 54 78
    OPzS2-1200 2 1200 275 210 646 701 63.6 92
    OPzS2-1500 2 1500 275 210 773 828 81.7 112
    OPzS2-2000 2 2000 399 210 773 828 119.5 150
    OPzS2-2500 2 2500 487 212 771 826 152 204
    OPzS2-3000 2 3000 576 212 772 806 170 230
    Products will be improved without notice, please contact sales for specification in kind prevail.
