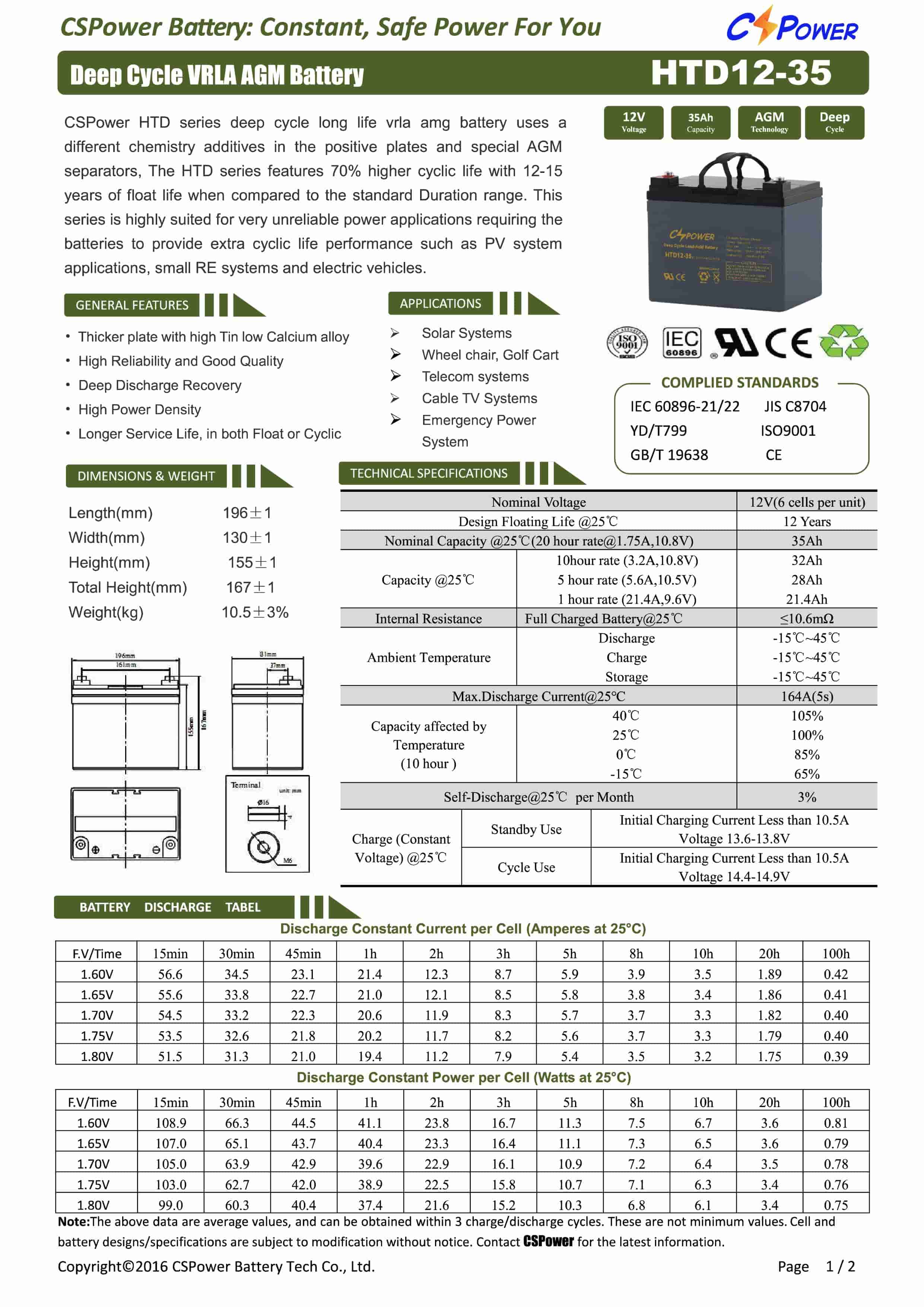

CSPower HTD12-35 Deep Cycle VRLA AGM Battery

● Capacity: 6V200Ah~6V420Ah, 8V170Ah~8V200Ah, 12V14Ah~12V300Ah.

● Designed floating service life: 12~15years @25°C/77°F

Able to operate at -15C to 45°C

50% DOD 1200 cycles

Three years warranty

Normal,30 days for production with injection molding Lead-plate by ourself

OEM brand is free charge.

● Application: Solar power generation grid, Off Grid energy storage systems, Wind Power Systems, sweeper, forklift

● Certificates:CE/UL/ISO/IEC 60896/IEC 61427

● Trade Terms:EXW/FOB/CIF

● Color:Grey Body Black Cover

HTD12-35
Nominal Voltage			12V (6 cells per unit)
Design Floating Life @ 25℃			12 Years
Nominal Capacity @ 25℃		20 hour rate@ 21.0A, 5.4V	35Ah
Capacity @ 25℃		10 hour rate (37.8A, 5.4V)	32Ah
		5 hour rate (66.8A, 5.25V)	28Ah
		1 hour rate (233.3A, 4.8V)	21.4Ah
Internal Resistance		Full Charged Battery@ 25℃	≤10.6mΩ
Ambient Temperature		Discharge	-15℃~45℃
		Charge	-15℃~45℃
		Storage	-15℃~45℃
Max.Discharge Current			@ 25℃ 164A(5s)
Capacity affected by Temperature (10 hour )		40℃	105%
		25℃	100%
		0℃	85%
		-15℃	65%
Self-Discharge@25℃per Month			3%
Charge (Constant Voltage) @ 25℃	Standby Use	Initial Charging Current Less than 8.5A Voltage 13.6 - 13.8V
	Cycle Use	Initial Charging Current Less than 8.5A Voltage 14.4 - 14.9V
Dimension (mmmmmm)	Length 196±1 * Width 130±1 * Height 155±1 (Total Height 167±1)
Weight (kg)	10.5±3%

Previous: CSPower HTD12-26 Deep Cycle VRLA AGM Battery

Next: CSPower HTD12-40 Deep Cycle VRLA AGM Battery

CSPower MODEL	Voltage (V)	Capacity (Ah)	Dimension				Weight (kg) (±3%)	Terminal	Bolt
CSPower MODEL	Voltage (V)	Capacity (Ah)	Length (mm)	Width (mm)	Height (mm)	Total Height (mm)	Weight (kg) (±3%)	Terminal	Bolt
HTD6-250	6	250/20HR	260	178	265	272	34.8	T5	M8×18
HTD6-310	6	310/20HR	295	178	354	360	46.3	T5/AF	M8×18
HTD6-330	6	330/20HR	295	178	354	360	46.6	T5/AF	M8×18
HTD6-380	6	380/20HR	295	178	404	410	55.3	T5/AF	M8×18
HTD6-420	6	420/20HR	295	178	404	410	56.8	T5/AF	M8×18
HTD8-170	8	170/20HR	260	182	266	271	34.3	M8
HTD8-200	8	200/20HR	260	182	295	301	38.3	M8
HTD12-14	12	14/20HR	152	99	96	102	4	F1/F2	/
HTD12-20	12	20/20HR	181	77	167	167	6	T1/D1	M5×12
HTD12-24	12	24/20HR	166	175	126	126	8.3	T2	M6×14
HTD12-26	12	26/20HR	165	126	174	179	8.4	T2	M6×14
HTD12-35	12	35/20HR	196	130	155	167	10.5	T3	M6×16
HTD12-40	12	40/20HR	198	166	174	174	14.2	T2	M6×14
HTD12-55	12	55/20HR	229	138	208	212	16	T3	M6×16
HTD12-70	12	70/20HR	350	167	178	178	23.3	T3	M6×16
HTD12-75	12	75/20HR	260	169	208	227	25	T3	M6×16
HTD12-85	12	85/20HR	260	169	208	227	26.1	T3	M6×16
HTD12-90	12	90/20HR	307	169	211	216	28.2	T3	M6×16
HTD12-100	12	100/20HR	307	169	211	216	30.2	T3/T4/AP	M6×16
HTD12-110	12	110/20HR	331	174	214	220	33.3	T4/AP	M8×18
HTD12-120	12	120/20HR	407	173	210	233	39.2	T5	M8×18
HTD12-135	12	135/20HR	344	172	280	285	41	T5/AP	M8×18
HTD12-150	12	150/20HR	484	171	241	241	45.5	T4	M8×18
HTD12-180	12	180/20HR	532	206	216	222	56	T4	M8×18
HTD12-200	12	200/20HR	532	206	216	222	58.4	T4	M8×18
HTD12-230	12	230/20HR	522	240	219	225	65	T5	M8×18
HTD12-250	12	250/20HR	520	268	203	209	71	T5	M8×18
HTD12-300	12	300/20HR	520	268	220	226	77	T5	M8×18
Products will be improved without notice, please contact sales for specification in kind prevail.
