CSPower FT12-55 Durable VRLA AGM Battery

Short Description:

FT SERIES FRONT TERMINAL AGM BATTERY

● Capacity: 12V55Ah~12V200Ah

● Designed floating service life: 8-10 years @ 25 °C/77 °F.

● Brand: CSPOWER / OEM Brand for customers Freely

● Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 /UL Approved

● Trade Terms:EXW/FOB/CIF

● Application: Telecommunication, UPS Backup




Product Detail

Technical Data

Product Tags

FT12-55
Nominal Voltage 12V (6 cells per unit)
Design Floating Life @ 25℃ 10 Years
Nominal Capacity @ 25℃ 10 hour rate@5.5A,10.8V 55Ah
Capacity @ 25℃ 20hour rate (2.92A,10.8V) 58.4Ah
5 hour rate (9.7A,10.5V)  48.5Ah
1 hour rate (35.1A,9.6V) 35.1Ah
Internal Resistance  Full Charged Battery@ 25℃  ≤8.1mΩ
Ambient Temperature Discharge  -15℃~45℃
Charge  -15℃~45℃
Storage  -15℃~45℃
Max.Discharge Current @ 25℃ 330A(5s)
Capacity affected by Temperature (10 hour ) 40℃ 105%
25℃ 100%
0℃ 85%
-15℃ 65%
Self-Discharge@25℃per Month  3%
Charge (Constant Voltage) @ 25℃ Standby Use Initial Charging Current Less than 13.75A Voltage 13.6-13.8V
Cycle Use Initial Charging Current Less than 13.75A Voltage 14.4-14.9V
Dimension (mm*mm*mm) Length(mm) 277±1 Width(mm) 106±1 Height(mm) 223±1 Total Height(mm) 223±1
Weight (kg) 16.0±3%

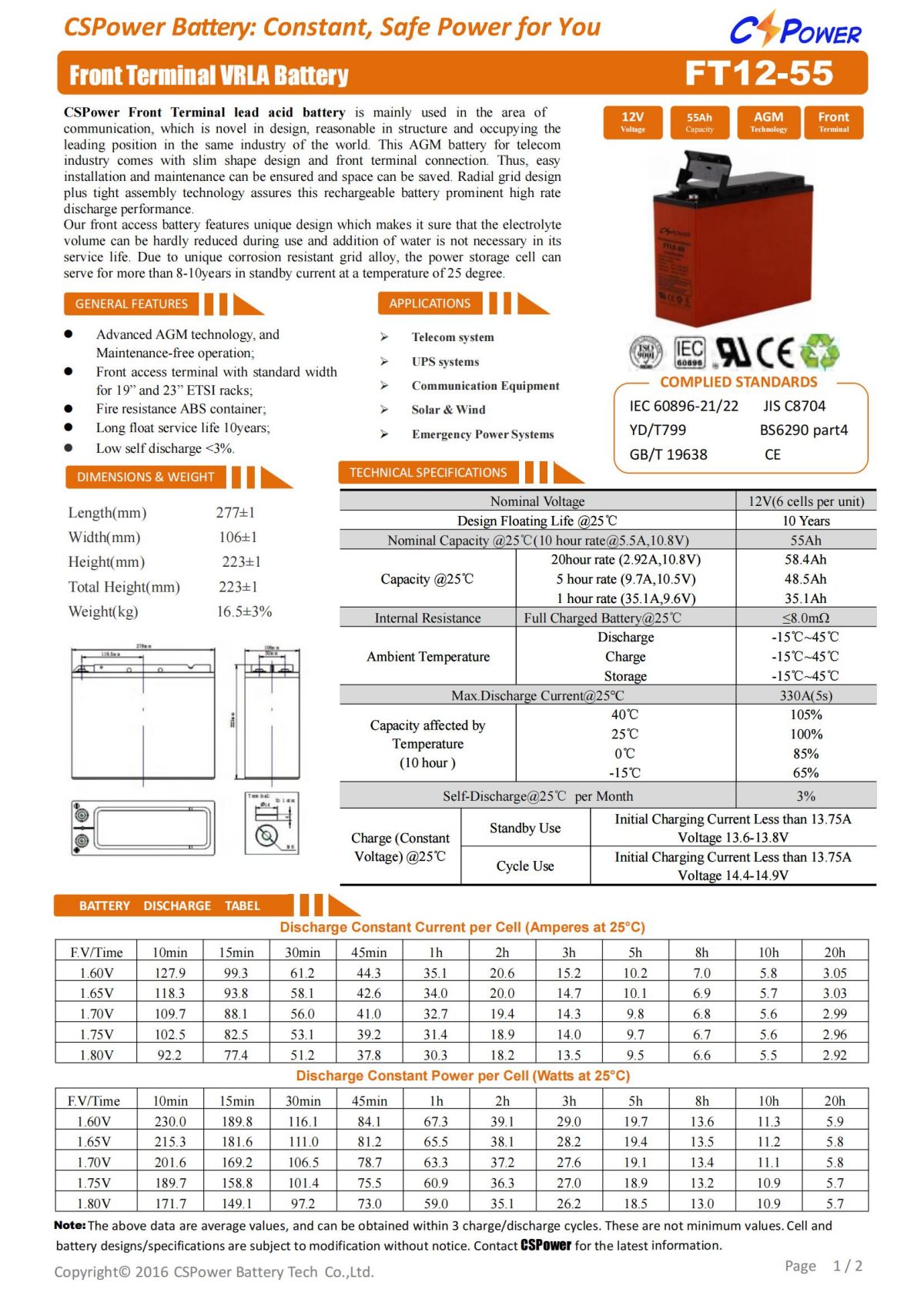

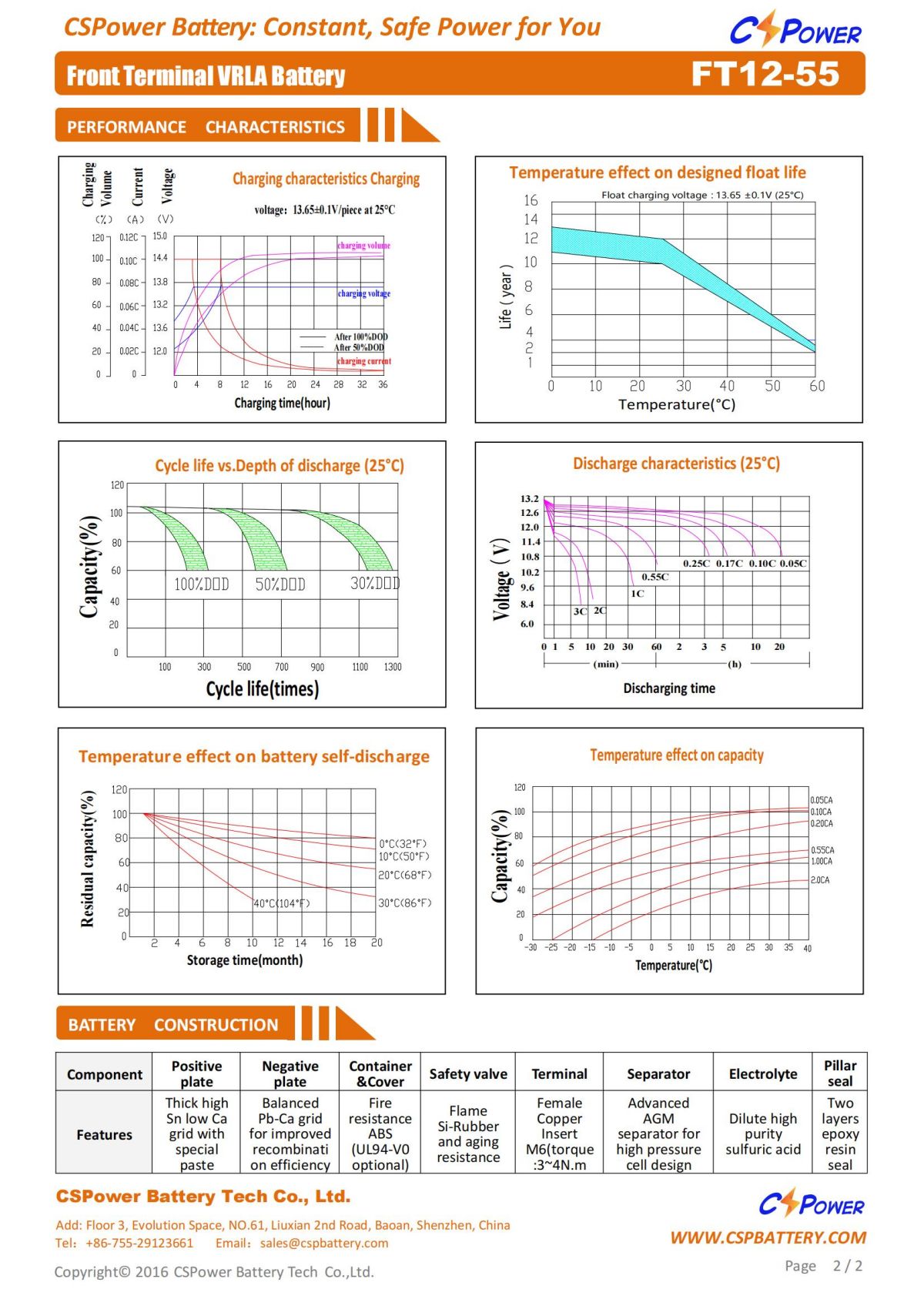

aszxcxz1 aszxcxz2


  • Previous:
  • Next:

  • CSPower
    MODEL
    Voltage
    (V)
    Capacity
    (Ah)
    Dimension Weight (kg)
    (±3%)
    Terminal
    Length
    (mm)
    Width
    (mm)
    Height
    (mm)
    Total Height
    (mm)
    FT12-55 12 55/10HR 277 106 223 223 16 M6×16
    FT12-80 12 80/10HR 562 114 188 188 25 M6×16
    FT12-100 12 100/10HR 507 110 223 223 29.4 M8×16
    FT12-105/110 12 110/10HR 394 110 286 286 30.5 M8×16
    FT12-125 12 125/10HR 552 110 239 239 38 M8×16
    FT12-150 12 150/10HR 551 110 288 288 44 M8×16
    FT12-160 12 160/10HR 551 110 288 288 44.5 M8×16
    FT12-175 12 175/10HR 546 125 316 323.5 53.5 M8×16
    FT12-180 12 180/10HR 560 125 316 316 55 M8×16
    FT12-200B 12 200/10HR 560 125 316 316 58 M8×16
    FT12-200A 12 200/10HR 560 125 316 316 59 M8×16
