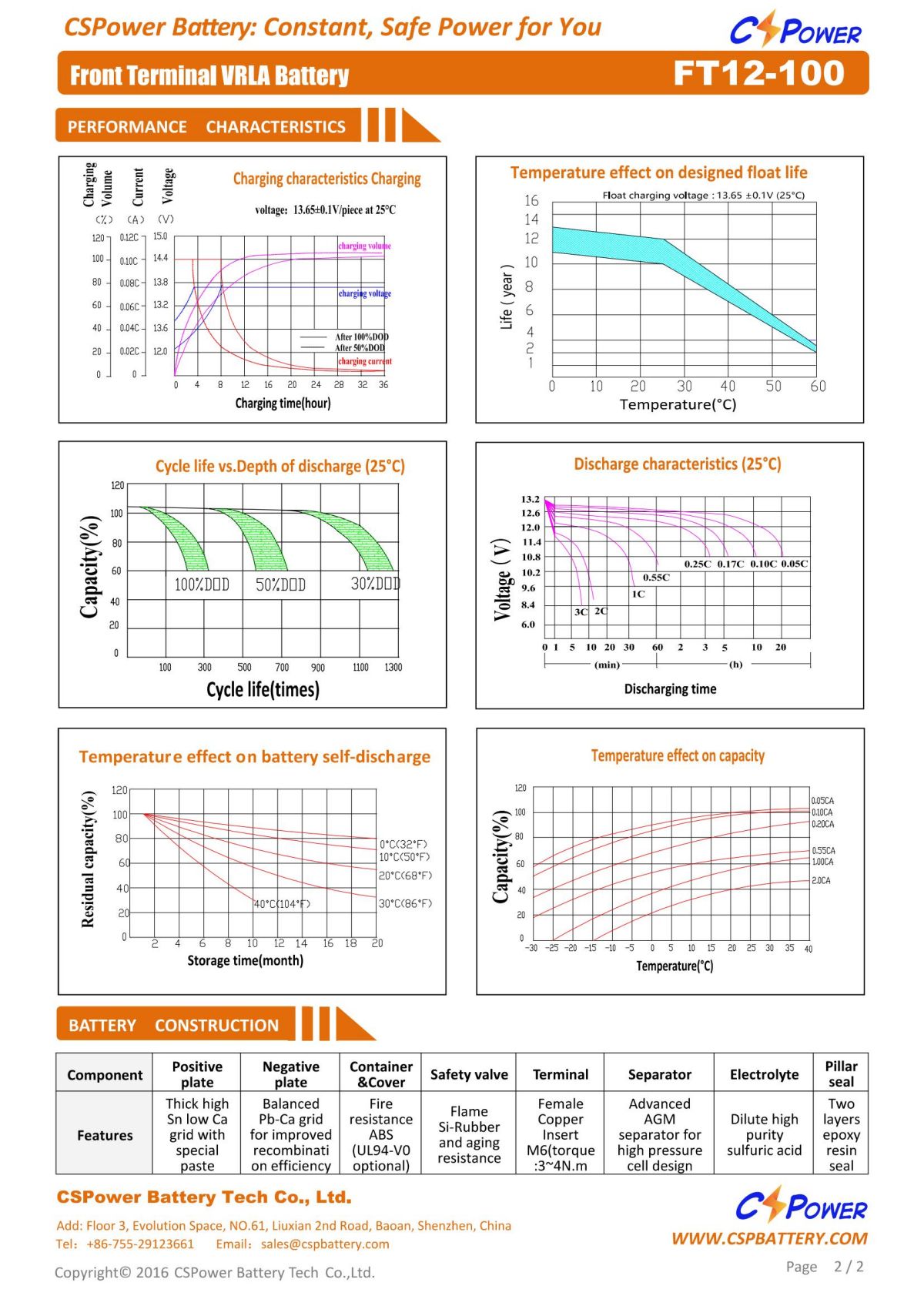

CSPower FT12-100 Durable VRLA AGM Battery
p
CSPower FT12-100 Durable VRLA AGM Battery
| FT12-100 | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25℃ | 10 Years | ||
| Nominal Capacity @ 25℃ | 10 hour rate@10.0A,10.8V | 100Ah | |
| Capacity @ 25℃ | 20hour rate (5.3A,10.8V) | 106Ah | |
| 5 hour rate (17.6A,10.5V) | 88.0Ah | ||
| 1 hour rate (63.8A,9.6V) | 63.8Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | ≤5.9mΩ | |
| Ambient Temperature | Discharge | -15℃~45℃ | |
| Charge | -15℃~45℃ | ||
| Storage | -15℃~45℃ | ||
| Max.Discharge Current | @ 25℃ 600A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
| 25℃ | 100% | ||
| 0℃ | 85% | ||
| -15℃ | 65% | ||
| Self-Discharge@25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 25.0A Voltage 13.6-13.8V | |
| Cycle Use | Initial Charging Current Less than 25.0A Voltage 14.4-14.9V | ||
| Dimension (mm*mm*mm) | Length(mm) 507±1 Width(mm) 110±1 Height(mm) 228±1 Total Height(mm) 228±1 | ||
| Weight (kg) | Weight(kg) 29.4±3% | ||
| CSPower MODEL |
Voltage (V) |
Capacity (Ah) |
Dimension | Weight (kg) (±3%) |
Terminal | |||
| Length (mm) |
Width (mm) |
Height (mm) |
Total Height (mm) |
|||||
| FT12-55 | 12 | 55/10HR | 277 | 106 | 223 | 223 | 16 | M6×16 |
| FT12-80 | 12 | 80/10HR | 562 | 114 | 188 | 188 | 25 | M6×16 |
| FT12-100 | 12 | 100/10HR | 507 | 110 | 223 | 223 | 29.4 | M8×16 |
| FT12-105/110 | 12 | 110/10HR | 394 | 110 | 286 | 286 | 30.5 | M8×16 |
| FT12-125 | 12 | 125/10HR | 552 | 110 | 239 | 239 | 38 | M8×16 |
| FT12-150 | 12 | 150/10HR | 551 | 110 | 288 | 288 | 44 | M8×16 |
| FT12-160 | 12 | 160/10HR | 551 | 110 | 288 | 288 | 44.5 | M8×16 |
| FT12-175 | 12 | 175/10HR | 546 | 125 | 316 | 323.5 | 53.5 | M8×16 |
| FT12-180 | 12 | 180/10HR | 560 | 125 | 316 | 316 | 55 | M8×16 |
| FT12-200B | 12 | 200/10HR | 560 | 125 | 316 | 316 | 58 | M8×16 |
| FT12-200A | 12 | 200/10HR | 560 | 125 | 316 | 316 | 59 | M8×16 |
