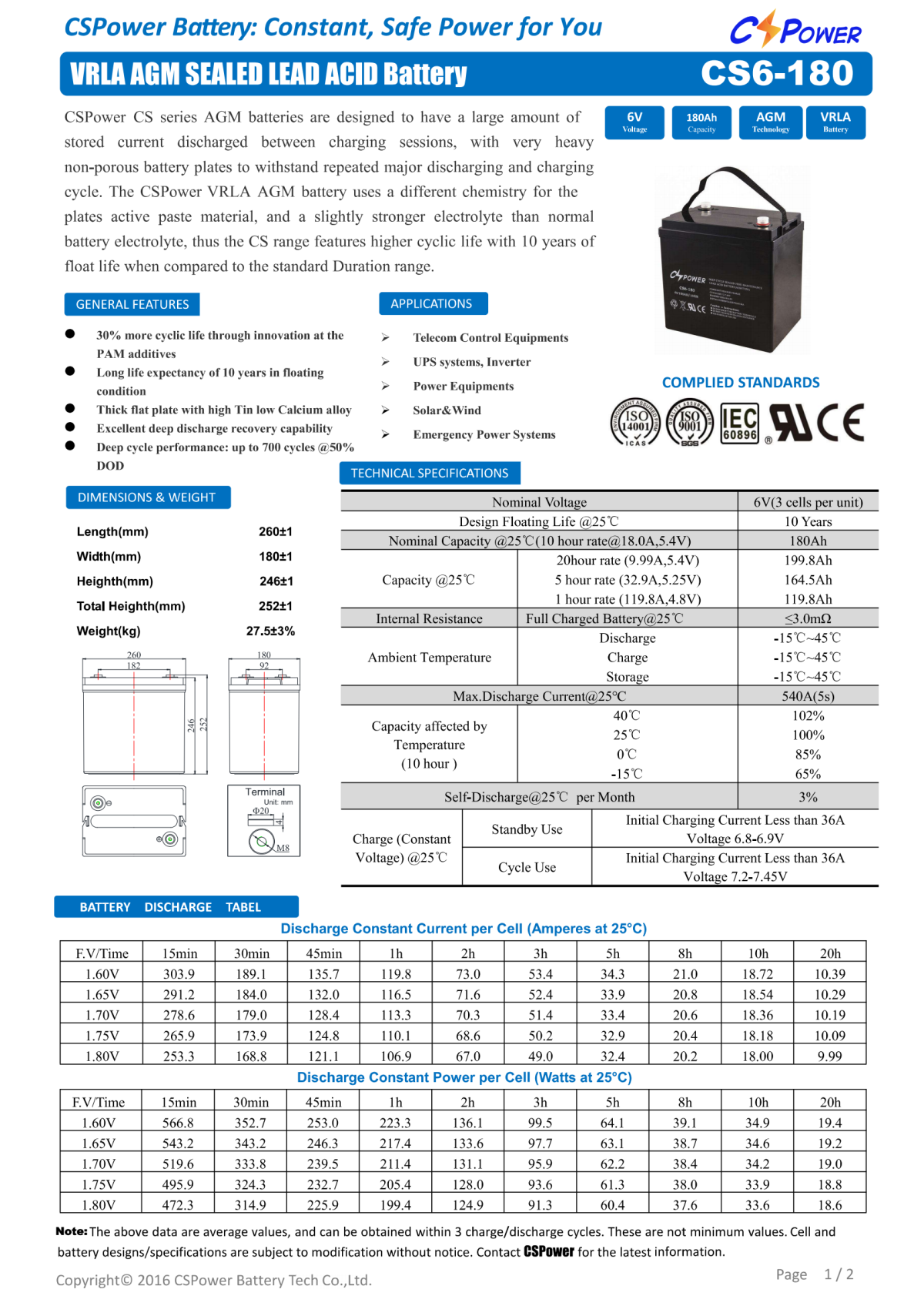

CSPower CS6-180 Durable VRLA AGM Battery
p
CS6-180 | |||
Nominal Voltage | 6V (3 cells per unit) | ||
Design Floating Life @ 25℃ | 10 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate@18.0A,10.8V | 180Ah | |
Capacity @ 25℃ | 20 hour rate (9.99A, 10.8V) | 199.8Ah | |
5 hour rate (45.7A, 10.5V) | 164.8Ah | ||
1 hour rate (184.8A,9.6V) | 119.8Ah | ||
Internal Resistance | Full Charged Battery@ 25℃ | ≤3.0mΩ | |
Ambient Temperature | Discharge | -15℃~45℃ | |
Charge | -15℃~45℃ | ||
Storage | -15℃~45℃ | ||
Max.Discharge Current | @ 25℃ 540A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-Discharge@25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 36A Voltage 6.8-6.9V | |
Cycle Use | Initial Charging Current Less than 36A Voltage 7.2-7.45V | ||
Dimension (mm*mm*mm) | Length 260±1 * Width 180±1 * Height 247±1 (Total Height 251±1) | ||
Weight (kg) | 27.5±3% |
CSPOWER MODEL |
Voltage (V) |
Capacity (Ah) |
Dimension | Weight (kg) (±3%) |
Terminal | Bolt | |||
Length (mm) |
Width (mm) |
Height (mm) |
Total Height (mm) |
||||||
CS6-4.0 | 6 | 4/20HR | 70 | 47 | 101 | 107 | 0.7 | F1/F2/CUT | / |
CS6-4.5 | 6 | 4.5/20HR | 70 | 47 | 101 | 107 | 0.75 | F1/F2/CUT | / |
CS6-5 | 6 | 5/20HR | 70 | 47 | 101 | 107 | 0.8 | F1/F2 | / |
CS6-7.0 | 6 | 7/20HR | 151 | 34 | 95 | 101 | 1.08 | F1/F2 | / |
CS6-10 | 6 | 10/20HR | 151 | 50 | 94 | 100 | 1.6 | F1/F2 | / |
CS6-12 | 6 | 12/20HR | 151 | 50 | 94 | 100 | 1.75 | F1/F2 | / |
CS12-4 | 12 | 4/20HR | 90 | 71 | 101 | 107 | 1.35 | F1/F2 | / |
CS12-4.5 | 12 | 4.5/20HR | 90 | 71 | 101 | 107 | 1.48 | F1/F2 | / |
CS12-5 | 12 | 5/20HR | 90 | 71 | 101 | 107 | 1.58 | F1/F2 | / |
CS12-6.5 | 12 | 6.5/20HR | 151 | 65 | 94 | 100 | 1.9 | F1/F2 | / |
CS12-7.0 | 12 | 7/20HR | 151 | 65 | 94 | 100 | 2.05 | F1/F2 | / |
CS12-7.2 | 12 | 7.2/20HR | 151 | 65 | 94 | 100 | 2.15 | F1/F2 | / |
CS12-7.5 | 12 | 7.5/20HR | 151 | 65 | 94 | 100 | 2.2 | F1/F2 | / |
CS12-9 | 12 | 9/20HR | 151 | 65 | 94 | 100 | 2.4 | F1/F2 | / |
CS12-10 | 12 | 10/20HR | 152 | 99 | 96 | 102 | 3.2 | F1/F2 | / |
CS12-12 | 12 | 12/20HR | 152 | 99 | 96 | 102 | 3.5 | F1/F2 | / |
CS12-15 | 12 | 15/20HR | 152 | 99 | 96 | 102 | 3.8 | F1/F2 | / |
CS12-17/18 | 12 | 17/18/20HR | 181 | 77 | 167 | 167 | 5.2 | T1 | M5×16 |
CS12-20 | 12 | 20/20HR | 181 | 77 | 167 | 167 | 6 | T2 | M6×16 |
CS12-24 | 12 | 24/10HR | 166 | 126 | 174 | 174 | 7.7 | T2 | M6×16 |
CS12-26 | 12 | 26/10HR | 166 | 175 | 126 | 126 | 8.3 | T2 | M6×16 |
CS12-35 | 12 | 35/10HR | 196 | 130 | 155 | 167 | 10 | T2 | M6×16 |
CS12-38/40 | 12 | 38/40 /10HR | 198 | 166 | 172 | 172 | 12.3 | T2 | M6×16 |
CS12-45 | 12 | 45/10HR | 198 | 166 | 174 | 174 | 13 | T2 | M6×16 |
CS12-50 | 12 | 50/10HR | 229 | 138 | 208 | 212 | 15.5 | T3 | M6×16 |
CS12-55 | 12 | 55/10HR | 229 | 138 | 208 | 212 | 16.2 | T3 | M6×16 |
CS12-65 | 12 | 65/10HR | 350 | 167 | 178 | 178 | 20.5 | T3 | M6×16 |
CS12-70 | 12 | 70/10HR | 350 | 167 | 178 | 178 | 21.3 | T3 | M6×16 |
CS12-75 | 12 | 75/10HR | 260 | 169 | 211 | 215 | 21.7 | T3 | M6×16 |
CS12-80 | 12 | 80/10HR | 260 | 169 | 211 | 215 | 23.3 | T3 | M8×16 |
CS12-85/90 | 12 | 85/90/10HR | 331 | 174 | 214 | 219 | 24.8 | T3 | M6×16 |
CS12-100C | 12 | 100/20HR | 307 | 169 | 211 | 216 | 26.5 | T3 | M6×16 |
CS12-100A | 12 | 100/10HR | 331 | 174 | 214 | 219 | 29 | T4 | M6×16 |
CS12-120B | 12 | 120/10HR | 407 | 173 | 208 | 233 | 33 | T5 | M8×16 |
CS12-120A | 12 | 120/10HR | 407 | 173 | 208 | 233 | 34 | T5 | M8×16 |
CS12-135 | 12 | 135/10HR | 341 | 173 | 283 | 288 | 41 | T5 | M8×16 |
CS12-150B | 12 | 150/20HR | 484 | 171 | 241 | 241 | 41 | T4 | M8×16 |
CS12-150A | 12 | 150/10HR | 484 | 171 | 241 | 241 | 43.5 | T4 | M8×16 |
CS12-160 | 12 | 160/10HR | 532 | 206 | 216 | 222 | 48.8 | T4 | M8×16 |
CS12-180 | 12 | 180/10HR | 532 | 206 | 216 | 222 | 52.2 | T4 | M8×16 |
CS12-200B | 12 | 200/20HR | 522 | 240 | 219 | 225 | 55.3 | T5 | M8×16 |
CS12-200A | 12 | 200/10HR | 522 | 240 | 219 | 225 | 58.2 | T5 | M8×16 |
CS12-230 | 12 | 230/10HR | 522 | 240 | 219 | 225 | 61 | T5 | M8×16 |
CS12-250 | 12 | 250/10HR | 520 | 268 | 220 | 225 | 70 | T5 | M8×16 |
