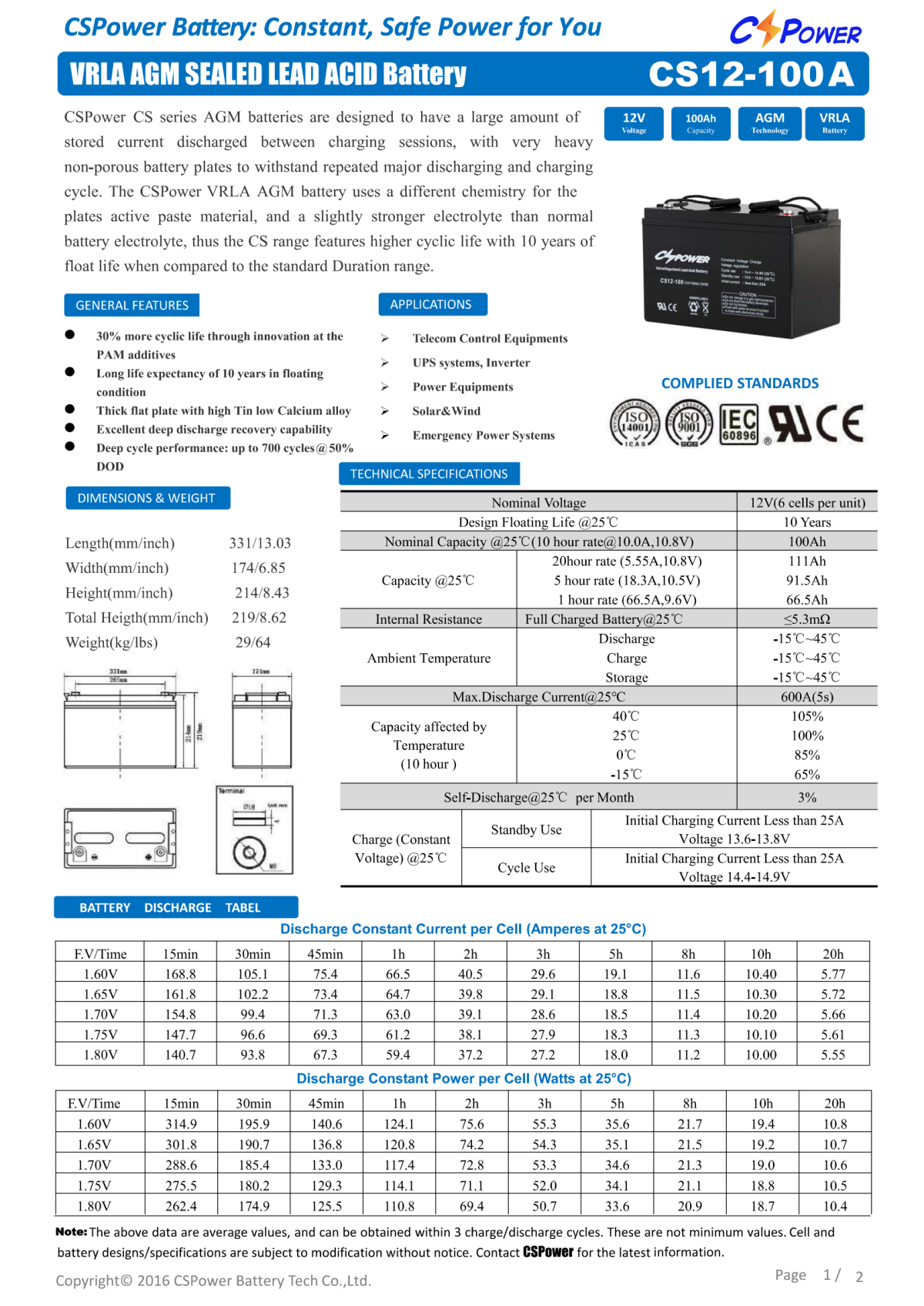

CSPower CS12-100A(10HR) Durable VRLA AGM Battery 29kg

Short Description:

CS Series SEALED FREE MAINTENANCE VRLA AGM BATTERY

● Voltage: 12V, 6V

● Capacity: 12V4Ah~12V250Ah; 6V4Ah~6V12Ah

● Designed floating service life: 8-10 years @ 25 °C/77 °F.

● Brand: CSPOWER / OEM Brand for customers Freely

● Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 /UL Approved

CSPOWER CS series Sealed free maintenance lead acid batteries are designed with AGM technology,high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the fields of UPS, Security and Emergency lighting system.

Send email to us Download as PDF

Product Detail

Technical Data

Product Tags

CS12-100
Nominal Voltage			12V (6 cells per unit)
Design Floating Life @ 25℃			10 Years
Nominal Capacity @ 25℃		10 hour rate@10.0A,10.8V	100Ah
Capacity @ 25℃		20 hour rate (5.55A, 10.8V)	111Ah
		5 hour rate (18.3A, 10.5V)	91.5Ah
		1 hour rate (46.5A,9.6V)	66.5Ah
Internal Resistance		Full Charged Battery@ 25℃	≤5.3mΩ
Ambient Temperature		Discharge	-15℃~45℃
		Charge	-15℃~45℃
		Storage	-15℃~45℃
Max.Discharge Current			@ 25℃ 600A(5s)
Capacity affected by Temperature (10 hour )		40℃	105%
		25℃	100%
		0℃	85%
		-15℃	65%
Self-Discharge@25℃per Month			3%
Charge (Constant Voltage) @ 25℃	Standby Use	Initial Charging Current Less than 25A Voltage 13.6-13.8V
	Cycle Use	Initial Charging Current Less than 25A Voltage 14.4-14.9V
Dimension (mmmmmm)	Length 331±1 * Width 174±1 * Height 214±1 (Total Height 219±1)
Weight (kg)	29±3%

Previous: CSPower CS12-90（10HR) Durable VRLA AGM Battery

Next: CSPower CS12-120A Durable VRLA AGM Battery 34kg

CSPOWER MODEL	Voltage (V)	Capacity (Ah)	Dimension				Weight (kg) (±3%)	Terminal	Bolt
CSPOWER MODEL	Voltage (V)	Capacity (Ah)	Length (mm)	Width (mm)	Height (mm)	Total Height (mm)	Weight (kg) (±3%)	Terminal	Bolt
CS6-4.0	6	4/20HR	70	47	101	107	0.7	F1/F2/CUT	/
CS6-4.5	6	4.5/20HR	70	47	101	107	0.75	F1/F2/CUT	/
CS6-5	6	5/20HR	70	47	101	107	0.8	F1/F2	/
CS6-7.0	6	7/20HR	151	34	95	101	1.08	F1/F2	/
CS6-10	6	10/20HR	151	50	94	100	1.6	F1/F2	/
CS6-12	6	12/20HR	151	50	94	100	1.75	F1/F2	/
CS12-4	12	4/20HR	90	71	101	107	1.35	F1/F2	/
CS12-4.5	12	4.5/20HR	90	71	101	107	1.48	F1/F2	/
CS12-5	12	5/20HR	90	71	101	107	1.58	F1/F2	/
CS12-6.5	12	6.5/20HR	151	65	94	100	1.9	F1/F2	/
CS12-7.0	12	7/20HR	151	65	94	100	2.05	F1/F2	/
CS12-7.2	12	7.2/20HR	151	65	94	100	2.15	F1/F2	/
CS12-7.5	12	7.5/20HR	151	65	94	100	2.2	F1/F2	/
CS12-9	12	9/20HR	151	65	94	100	2.4	F1/F2	/
CS12-10	12	10/20HR	152	99	96	102	3.2	F1/F2	/
CS12-12	12	12/20HR	152	99	96	102	3.5	F1/F2	/
CS12-15	12	15/20HR	152	99	96	102	3.8	F1/F2	/
CS12-17/18	12	17/18/20HR	181	77	167	167	5.2	T1	M5×16
CS12-20	12	20/20HR	181	77	167	167	6	T2	M6×16
CS12-24	12	24/10HR	166	126	174	174	7.7	T2	M6×16
CS12-26	12	26/10HR	166	175	126	126	8.3	T2	M6×16
CS12-35	12	35/10HR	196	130	155	167	10	T2	M6×16
CS12-38/40	12	38/40 /10HR	198	166	172	172	12.3	T2	M6×16
CS12-45	12	45/10HR	198	166	174	174	13	T2	M6×16
CS12-50	12	50/10HR	229	138	208	212	15.5	T3	M6×16
CS12-55	12	55/10HR	229	138	208	212	16.2	T3	M6×16
CS12-65	12	65/10HR	350	167	178	178	20.5	T3	M6×16
CS12-70	12	70/10HR	350	167	178	178	21.3	T3	M6×16
CS12-75	12	75/10HR	260	169	211	215	21.7	T3	M6×16
CS12-80	12	80/10HR	260	169	211	215	23.3	T3	M8×16
CS12-85/90	12	85/90/10HR	331	174	214	219	24.8	T3	M6×16
CS12-100C	12	100/20HR	307	169	211	216	26.5	T3	M6×16
CS12-100A	12	100/10HR	331	174	214	219	29	T4	M6×16
CS12-120B	12	120/10HR	407	173	208	233	33	T5	M8×16
CS12-120A	12	120/10HR	407	173	208	233	34	T5	M8×16
CS12-135	12	135/10HR	341	173	283	288	41	T5	M8×16
CS12-150B	12	150/20HR	484	171	241	241	41	T4	M8×16
CS12-150A	12	150/10HR	484	171	241	241	43.5	T4	M8×16
CS12-160	12	160/10HR	532	206	216	222	48.8	T4	M8×16
CS12-180	12	180/10HR	532	206	216	222	52.2	T4	M8×16
CS12-200B	12	200/20HR	522	240	219	225	55.3	T5	M8×16
CS12-200A	12	200/10HR	522	240	219	225	58.2	T5	M8×16
CS12-230	12	230/10HR	522	240	219	225	61	T5	M8×16
CS12-250	12	250/10HR	520	268	220	225	70	T5	M8×16
