CSPower CL2-100 Deep Cycle AGM Battery

Short Description:

CSPOWER CL series of 2V VRLA AGM batteries upto 2V3000Ah are recognized as the most reliable and high quality battery system in the industry.
They are designed with advanced AGM (Absorbent Glass Mat) technology, Long service life designed with 10-15 years, the batteries comply to the most popular international standards.

• Capacity: 2V100Ah~2V3000Ah
• Designed floating servive life: 10-15 years @25 °C/77 °F.
• Brand: CSPOWER / OEM Brand for customers Freely
• Certificates: ISO9001/14001/18001; CE/IEC 60896-21/22 / IEC 61427


Product Detail

Technical Data

Product Tags

CL2-100
Nominal Voltage 2V(1 cell per unit)
Design Floating Life @ 25℃ 10 Years
Nominal Capacity @ 25℃ 10 hour rate@10.0A,1.8V 100Ah
Capacity @ 25℃ 20hour rate (5.3A,1.8V ) 106Ah
5 hour rate (17.6A,1.75V ) 88Ah
1 hour rate (64.1A,1.6V ) 64.1Ah
Internal Resistance  Full Charged Battery@ 25℃ ≤1.6mΩ
Ambient Temperature Discharge -20℃~50℃
Charge -20℃~50℃
Storage -20℃~50℃
Max.Discharge Current @ 25℃ 500A(5s)
Capacity affected by Temperature (10 hour ) 40℃ 105%
25℃ 100%
0℃ 85%
-15℃ 65%
Self-Discharge@25℃per Month 3%
Charge (Constant Voltage) @ 25℃ Standby Use Initial Charging Current Less than 15A Voltage 2.23-2.27V
Cycle Use Initial Charging Current Less than 15A Voltage 2.33-2.37V
Dimension (mm*mm*mm) Length 171±1 * Width 72±1 * Height  205±1 (Total Height 222±1)
Weight (kg) 5.8±3%

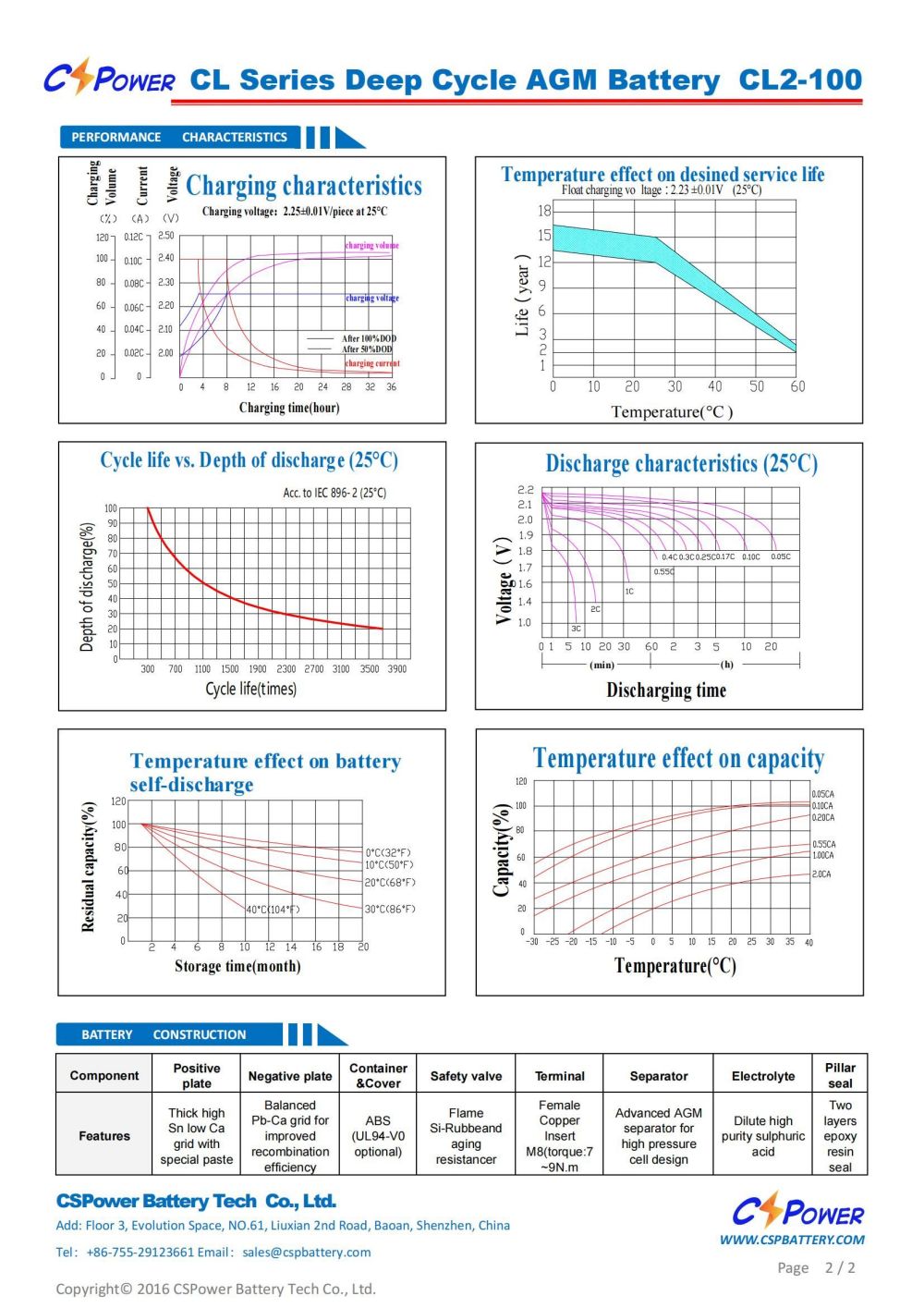

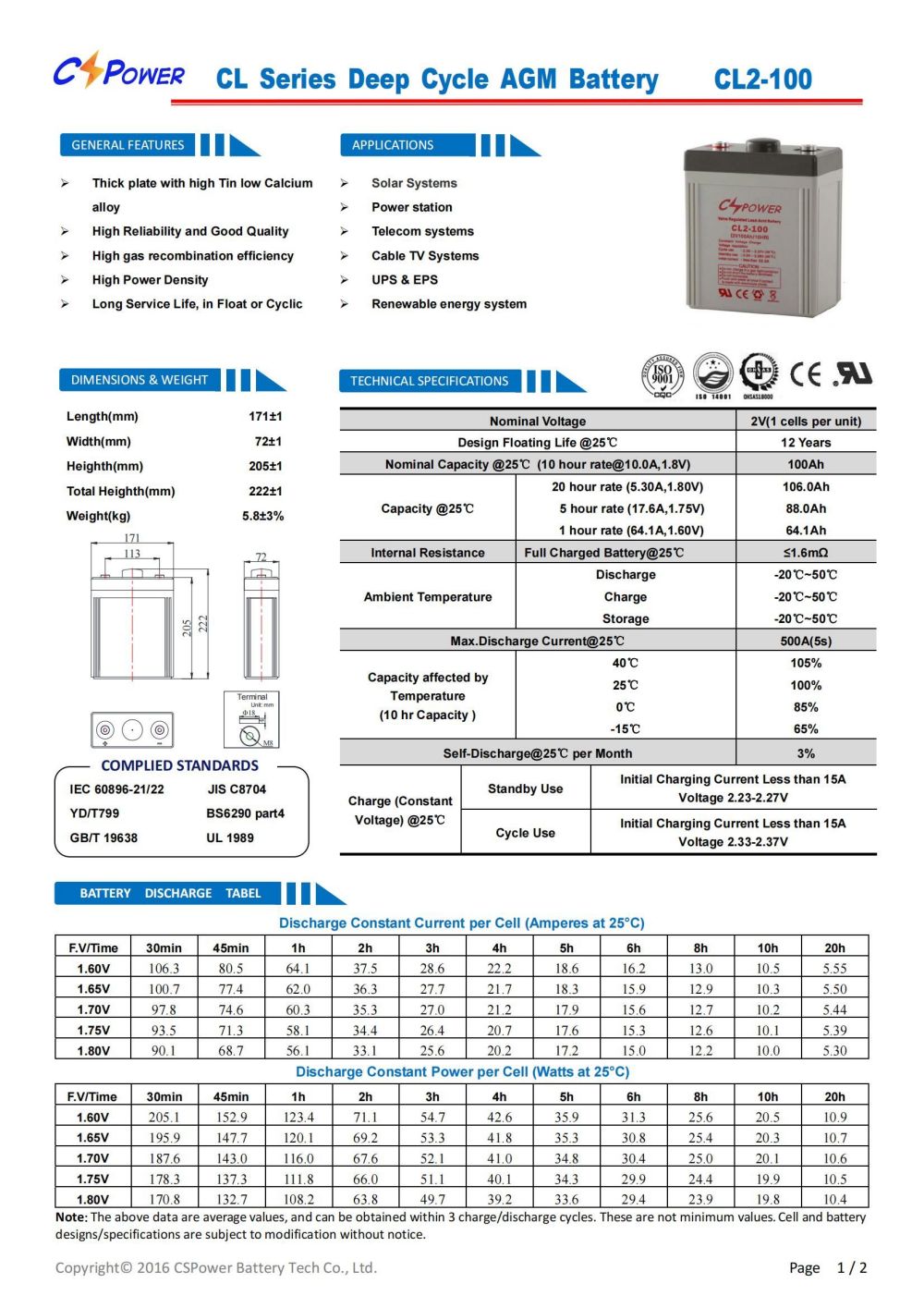

CSPower CL2-100 Deep Cycle AGM Battery_00 CSPower CL2-100 Deep Cycle AGM Battery_01


  • Previous:
  • Next:

  • CSP-MODEL Voltage
    (V)
    Capacity
    (Ah)
    Length
    (mm)
    Width
    (mm)
    Height
    (mm)
    Total Height
    (mm)
    Weight (kg)
    (±3%)
    Terminal Bolt
    CL2-100 2 100/10HR 172 72 205 222 5.9 T5 M8×20
    CL2-150 2 150/10HR 171 102 206 233 8.2 T5 M8×20
    CL2-200 2 200/10HR 170 106 330 367 13 T5 M8×20
    CL2-300 2 300/10HR 171 151 330 365 18.5 T5 M8×20
    CL2-400 2 400/10HR 211 176 329 367 26.1 T5 M8×20
    CL2-500 2 500/10HR 241 172 330 364 31 T5 M8×20
    CL2-600 2 600/10HR 301 175 331 366 37.7 T5 M8×20
    CL2-800 2 800/10HR 410 176 330 365 51.6 T5 M8×20
    CL2-1000 2 1000/10HR 475 175 328 365 62 T5 M8×20
    CL2-1200 2 1200/10HR 472 172 338 355 68.5 T5 M8×20
    CL2-1500 2 1500/10HR 401 351 342 378 96.5 T5 M8×20
    CL2-2000 2 2000/10HR 491 351 343 383 130 T5 M8×20
    CL2-2500 2 2500/10HR 712 353 341 382 180 T5 M8×20
    CL2-3000 2 3000/10HR 712 353 341 382 190 T5 M8×20
    Products will be improved without notice, please contact sales for specification in kind prevail.
