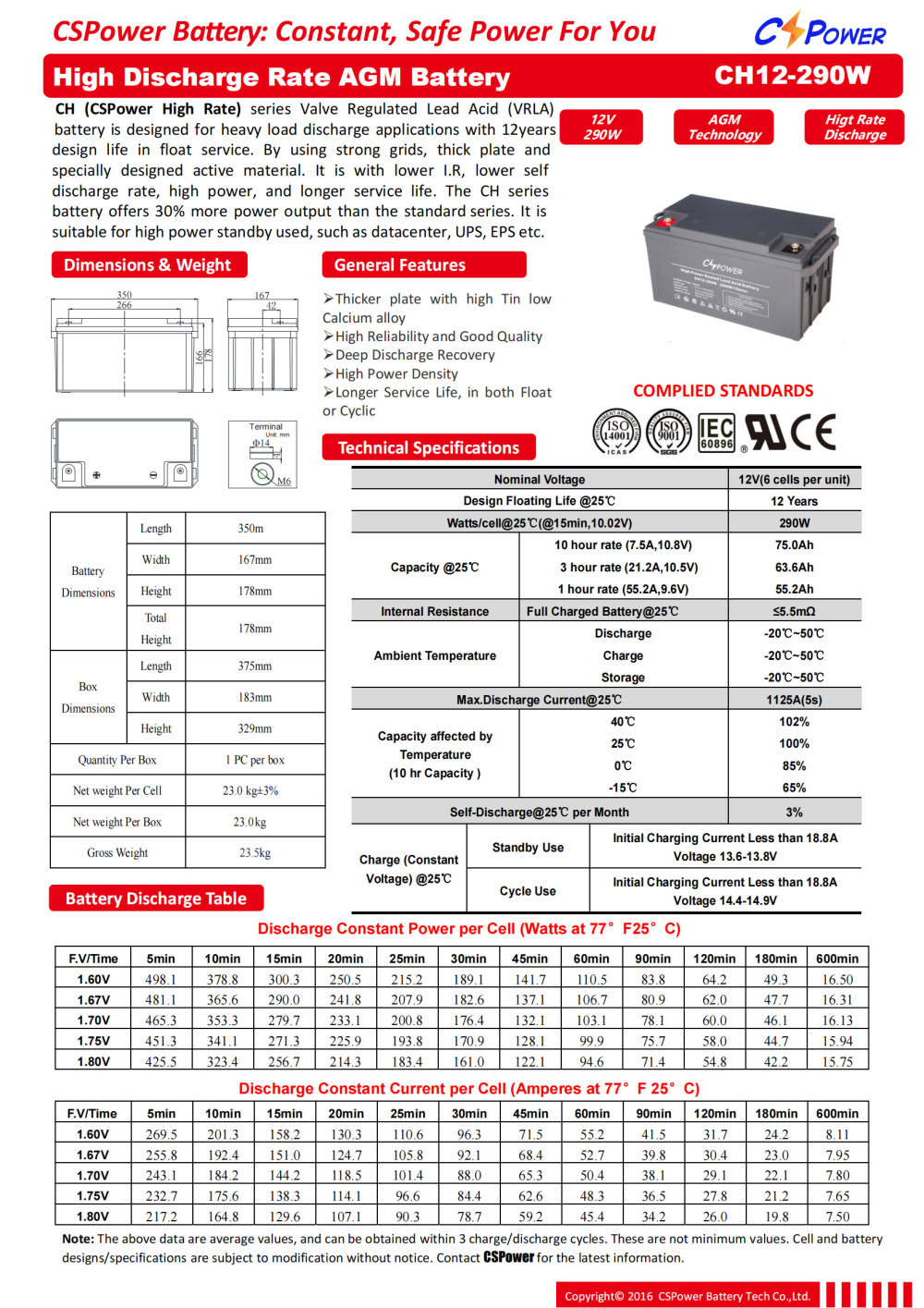

CSPower CH12-290W(12V75Ah) High Discharge Rate Battery

Short Description:

CSPOWER High discharge rate AGM battery: it is kind of special sealed free maintenance lead acid battery, also called high rate discharge battery, it is ideal for space limited applications which require more power than what can be delivered by a standard lead acid battery.

• Brand: CSPOWER / OEM Brand for customers Freely

• ISO9001/14001/18001;

• CE/UL/MSDS;

• IEC 61427/ IEC 60896-21/22;

CSPOWER high rate discharge AGM batteries are the best choice for the applications requiring small capacity but large discharge current such as high effect UPS system, starter, electric power tools, etc.

Send email to us Download as PDF

Product Detail

Technical Data

Product Tags

CH12-290W
Nominal Voltage			12V (6 cells per unit)
Capacity affected by Temperature (10 hour )		40℃	102%
		25℃	100%
		0℃	85%
		-15℃	65%
Watts/cell@15min			290W
Capacity @ 25℃		10hour rate (6A)	75Ah
		3 hour rate (17A)	63.6Ah
		1 hour rate (44.2A)	55.2Ah
Internal Resistance		Full Charged Battery@ 25℃	≤5.5mΩ
Self-Discharge@25ºC(77°F) Capacity		after 3 month storage	90%
		after 6 month storage	80%
		after 12 month storage	62%
Charge (Constant Voltage) @ 25℃	Standby Use	Initial Charging Current Less than 18.8A Voltage 13.6-13.8V
	Cycle Use	Initial Charging Current Less than 18.8A Voltage 14.4-14.9V
Dimension (mmmmmm)	Length(mm) 350±1 Width(mm) 167±1 Height(mm) 178±1 Total Height(mm) 178±1
Weight (kg)	23±3%

Previous: CSPower CH12-230W (12V60Ah) High Discharge Rate Battery

Next: CSPower CH12-300W(12V80AH) High Discharge Rate Battery

CSPower MODEL	Voltage (V)	Capacity (Ah)	Capacity	Dimension				Weight (kg) (±3%)	Terminal	Bolt
CSPower MODEL	Voltage (V)	Capacity (Ah)	(Ah)	Length (mm)	Width (mm)	Height (mm)	Total Height (mm)	Weight (kg) (±3%)	Terminal	Bolt
CH12-35W	12	35/15min	8/10HR	151	65	94	100	2.55	F2	/
CH12-55W	12	55/15min	12/10HR	152	99	96	102	3.8	F2	/
CH12-85W	12	85/15min	20/10HR	181	77	167	167	6.5	T1	M5×16
CH12-115W	12	115/15min	28/10HR	165	126	174	174	8.7	T2	M6×16
CH12-145W	12	145/15min	34/10HR	196	130	155	167	11	T3	M6×16
CH12-170W	12	170/15min	42/10HR	197	166	174	174	13.8	T3	M6×16
CH12-300W	12	300/15min	80/10HR	260	169	211	215	25	T3	M6×16
CH12-370W	12	370/15min	95/10HR	307	169	211	215	31	T3	M6×16
CH12-420W	12	420/15min	110/10HR	331	174	214	219	33.2	T4	M8×16
CH12-470W	12	470/15min	135/10HR	407	174	210	233	39	T5	M8×16
CH12-520W	12	520/15min	150/10HR	484	171	241	241	47	T4	M8×16
CH12-680W	12	680/15min	170/10HR	532	206	216	222	58.5	T5	M8×16
CH12-770W	12	770/15min	220/10HR	522	240	219	224	68	T6	M8×16
CH12-800W	12	800/15min	230/10HR	520	269	204	209	70	T6	M8×16
CH12-900W	12	900/15min	255/10HR	520	268	220	225	79	T6	M8×16
CH6-720W	6	720/15min	180/10HR	260	180	247	251	30.8	T5	M8×16
Products will be improved without notice, please contact sales for specification in kind prevail.
