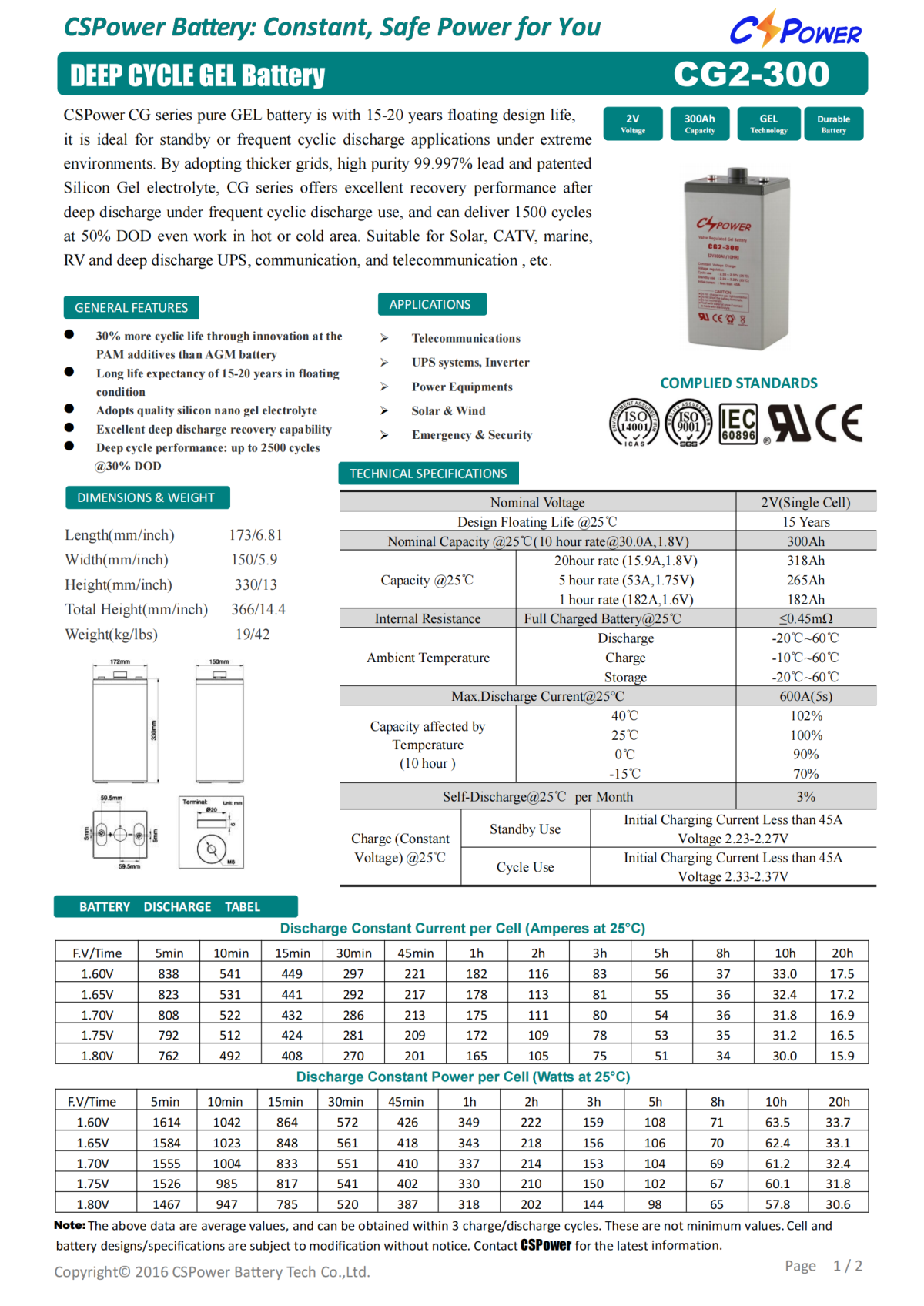

CSPower CG2-300 Deep Cycle GEL Battery
p
CG2-300 | |||
Nominal Voltage | 2V(Single Cell) | ||
Design Floating Life @ 25℃ | 15 Years | ||
Nominal Capacity @ 25℃ | 10 hour rate@30.0A,1.8V | 300Ah | |
Capacity @ 25℃ | 20hour rate (15.9A,1.8V ) | 318Ah | |
5 hour rate (53A,1.75V ) | 265Ah | ||
1 hour rate (182A,1.6V ) | 182Ah | ||
Internal Resistance | Full Charged Battery@ 25℃ | ≤0.45mΩ | |
Ambient Temperature | Discharge | -20℃~60℃ | |
Charge | -10℃~60℃ | ||
Storage | -20℃~60℃ | ||
Max.Discharge Current | @ 25℃ 600A(5s) | ||
Capacity affected by Temperature (10 hour ) | 40℃ | 102% | |
25℃ | 100% | ||
0℃ | 90% | ||
-15℃ | 70% | ||
Self-Discharge@25℃per Month | 3% | ||
Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 45A Voltage 2.23-2.27V | |
Cycle Use | Initial Charging Current Less than 45A Voltage 2.33-2.37V | ||
Dimension (mm*mm*mm) | Length 173±1 * Width 150±1 * Height 330±1 (Total Height 366±1) | ||
Weight (kg) | 19±3% |
CSPower MODEL |
Voltage (V) |
Capacity (Ah) |
Dimension | Weight (kg) (±3%) |
Terminal | Bolt | |||
Length (mm) |
Width (mm) |
Height (mm) |
Total Height (mm) |
||||||
CG2-200 | 2 | 200/10HR | 170 | 106 | 330 | 367 | 13.5 | T5 | M8×20 |
CG2-300 | 2 | 300/10HR | 171 | 151 | 330 | 365 | 19 | T5 | M8×20 |
CG2-400 | 2 | 400/10HR | 211 | 176 | 329 | 367 | 26.5 | T5 | M8×20 |
CG2-500 | 2 | 500/10HR | 241 | 172 | 330 | 364 | 31.5 | T5 | M8×20 |
CG2-600 | 2 | 600/10HR | 301 | 175 | 331 | 366 | 38 | T5 | M8×20 |
CG2-800 | 2 | 800/10HR | 410 | 176 | 330 | 365 | 52 | T5 | M8×20 |
CG2-1000 | 2 | 1000/10HR | 475 | 175 | 328 | 365 | 62.5 | T5 | M8×20 |
CG2-1200 | 2 | 1200/10HR | 475 | 175 | 328 | 365 | 69 | T5 | M8×20 |
CG2-1500 | 2 | 1500/10HR | 401 | 351 | 342 | 378 | 97 | T5 | M8×20 |
CG2-2000 | 2 | 2000/10HR | 491 | 351 | 343 | 383 | 130.5 | T5 | M8×20 |
CG2-2500 | 2 | 2500/10HR | 712 | 353 | 341 | 382 | 180.5 | T5 | M8×20 |
CG2-3000 | 2 | 3000/10HR | 712 | 353 | 341 | 382 | 190.5 | T5 | M8×20 |
Products will be improved without notice, please contact sales for specification in kind prevail. |
