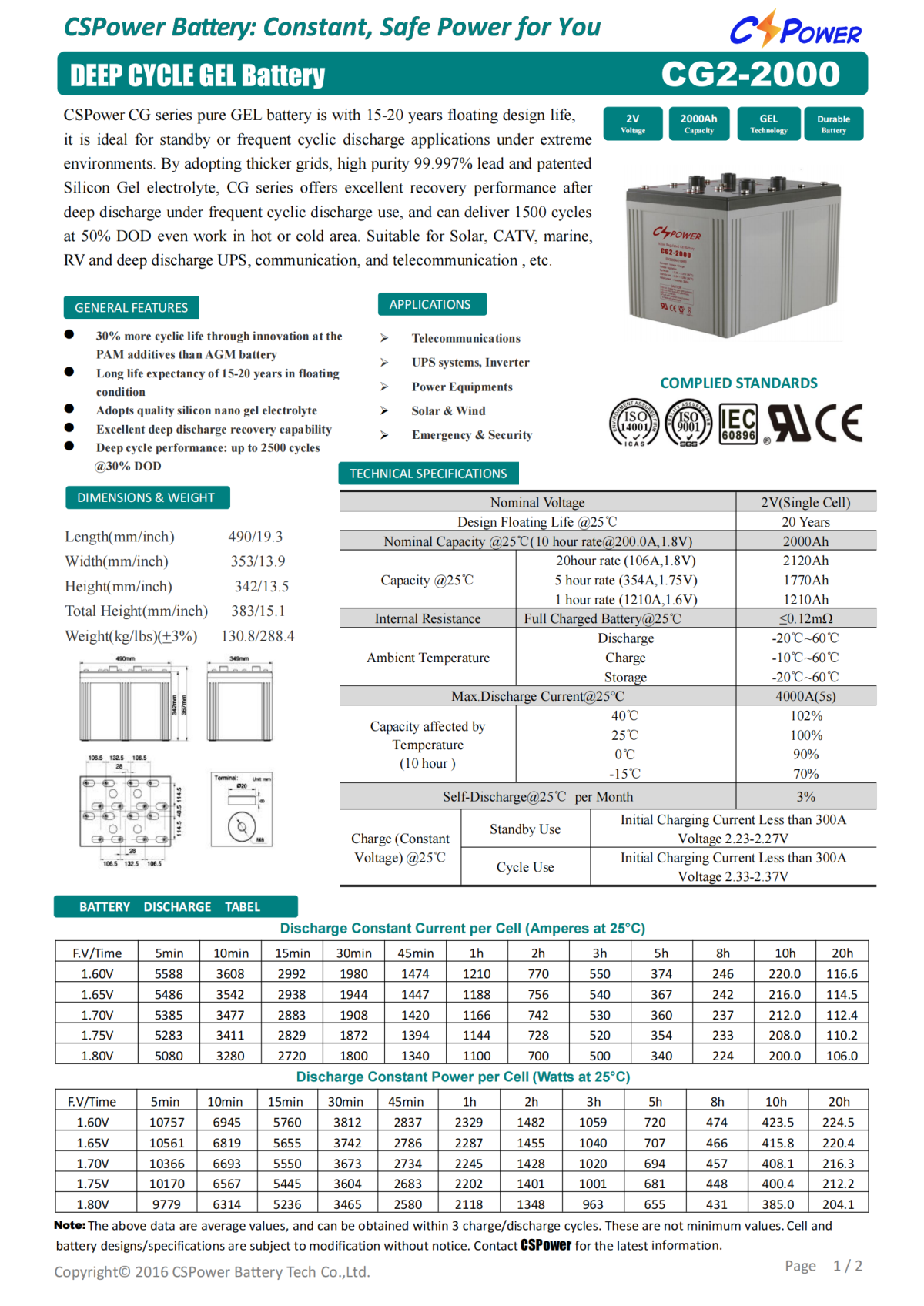

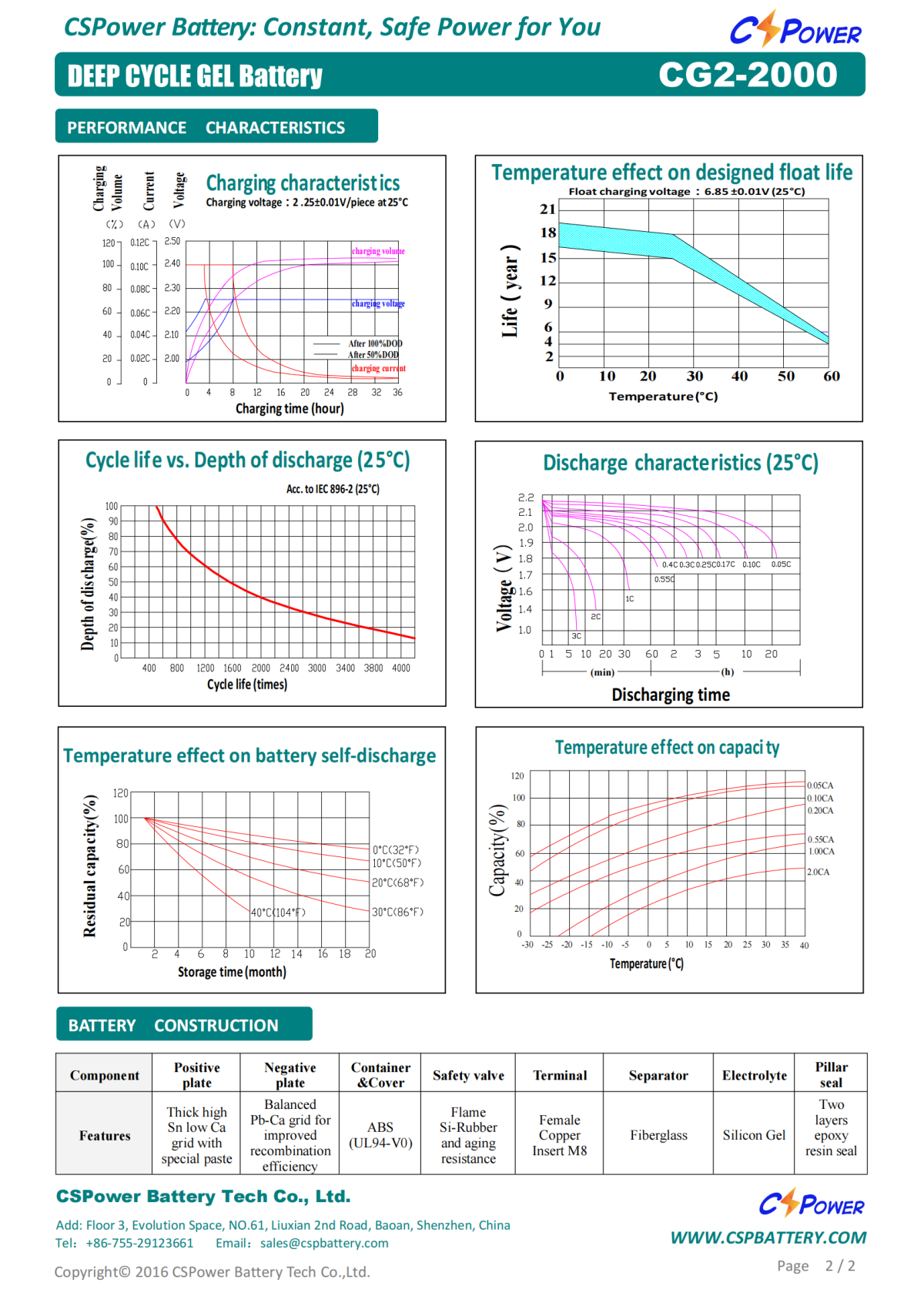

CSPower CG2-2000 Deep Cycle GEL Battery

CG SERIES 2V LONG LIFE DEEP CYCLE GEL BATTERY

Voltage: 2V

Capacity: 2V200Ah~2V3000Ah

Designed floating service life: 15~20 years @ 25 °C/77 °F.

Brand: CSPOWER / OEM Brand for customers Freely

Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 Approved

Application:

Communication equipment, Telecommunication control equipment;

Emergency lighting systems;

Electric power systems; Power station; Nuclear power station;

Solar powered and wind powered systems;

Load leveling and storage equipment;

Marine equipment; Power generation plants; Alarm systems;

Uninterruptible power supplies and stand-by power for computers;

Medical equipment;

Fire and security systems; Control equipment; Stand-by electric power.

CG2-2000
Nominal Voltage			2V(Single Cell)
Design Floating Life @ 25℃			20 Years
Nominal Capacity @ 25℃		10 hour rate@200.0A,1.8V	2000Ah
Capacity @ 25℃		20hour rate (106A,1.8V )	2120Ah
		5 hour rate (354A,1.75V )	1770Ah
		1 hour rate (1210A,1.6V )	1210Ah
Internal Resistance		Full Charged Battery@ 25℃	≤0.12mΩ
Ambient Temperature		Discharge	-20℃~60℃
		Charge	-10℃~60℃
		Storage	-20℃~60℃
Max.Discharge Current			@ 25℃ 4000A(5s)
Capacity affected by Temperature (10 hour )		40℃	102%
		25℃	100%
		0℃	90%
		-15℃	70%
Self-Discharge@25℃per Month			3%
Charge (Constant Voltage) @ 25℃	Standby Use	Initial Charging Current Less than 300A Voltage 2.23-2.27V
	Cycle Use	Initial Charging Current Less than 300A Voltage 2.33-2.37V
Dimension (mmmmmm)	Length 490±1 * Width 353±1 * Height 342±1 (Total Height 383±1)
Weight (kg)	130.8±3%

Previous: CSPower CG2-1500 Deep Cycle GEL Battery

Next: CSPower CG2-2500 Deep Cycle GEL Battery

CSPower MODEL	Voltage (V)	Capacity (Ah)	Dimension				Weight (kg) (±3%)	Terminal	Bolt
CSPower MODEL	Voltage (V)	Capacity (Ah)	Length (mm)	Width (mm)	Height (mm)	Total Height (mm)	Weight (kg) (±3%)	Terminal	Bolt
CG2-200	2	200/10HR	170	106	330	367	13.5	T5	M8×20
CG2-300	2	300/10HR	171	151	330	365	19	T5	M8×20
CG2-400	2	400/10HR	211	176	329	367	26.5	T5	M8×20
CG2-500	2	500/10HR	241	172	330	364	31.5	T5	M8×20
CG2-600	2	600/10HR	301	175	331	366	38	T5	M8×20
CG2-800	2	800/10HR	410	176	330	365	52	T5	M8×20
CG2-1000	2	1000/10HR	475	175	328	365	62.5	T5	M8×20
CG2-1200	2	1200/10HR	475	175	328	365	69	T5	M8×20
CG2-1500	2	1500/10HR	401	351	342	378	97	T5	M8×20
CG2-2000	2	2000/10HR	491	351	343	383	130.5	T5	M8×20
CG2-2500	2	2500/10HR	712	353	341	382	180.5	T5	M8×20
CG2-3000	2	3000/10HR	712	353	341	382	190.5	T5	M8×20
Products will be improved without notice, please contact sales for specification in kind prevail.
